Article number Select a color, please

Wall light

type ..0212

216,70

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

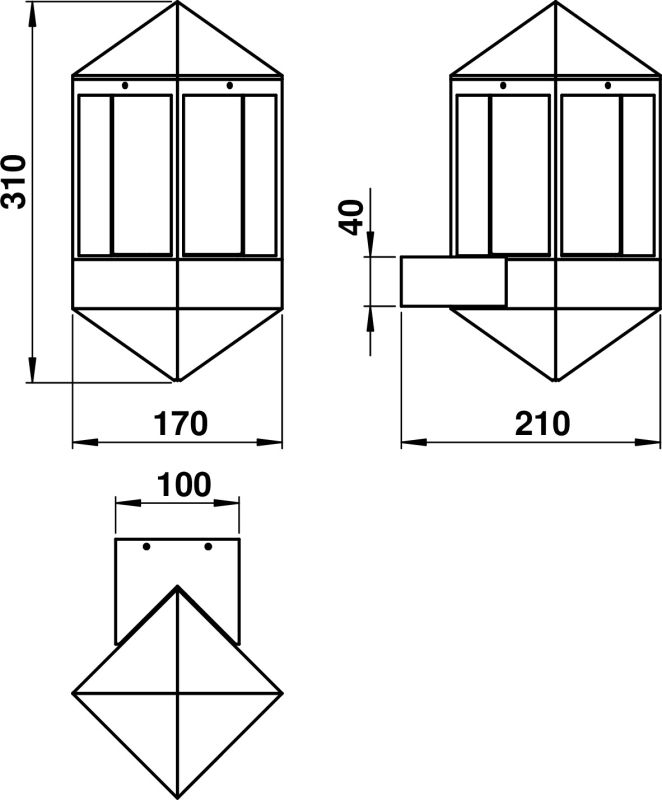

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660212
Offertext
For: 680212
Full catalog 21 / 22
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming manufacturer's proprietary system

Yes

Nominal voltage

230 V

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Voltage type

AC

Light sharing

Symmetric

Power factor

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, White

No dim function

Yes

Protection class

I

Dimming depending on control gear

Yes

Material cover

Glass opal

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lowest energy efficiency class of the exchangeable lamp

E

Type of control gear

Not required

Beam angle

Open beam/diffuse

Width

170 mm

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

310 mm

Type of wiring

Ending

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Connection type

Screwed terminal

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Length

210 mm

Height

< 700 mm

Light output

Direct

Conductor cross section

2.5 mm²

Style

Modern

Surface protection housing

Lacquered

Number of poles

3

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Shape

Eckig
