Data sheet
Article number
Select a color, please

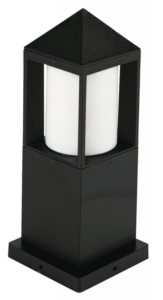

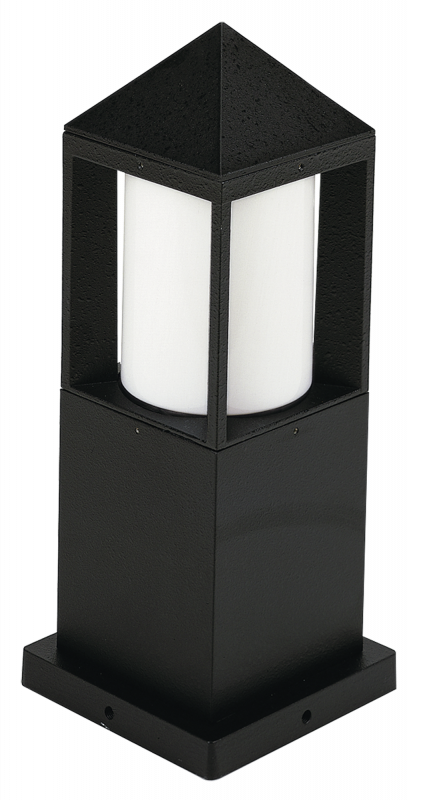

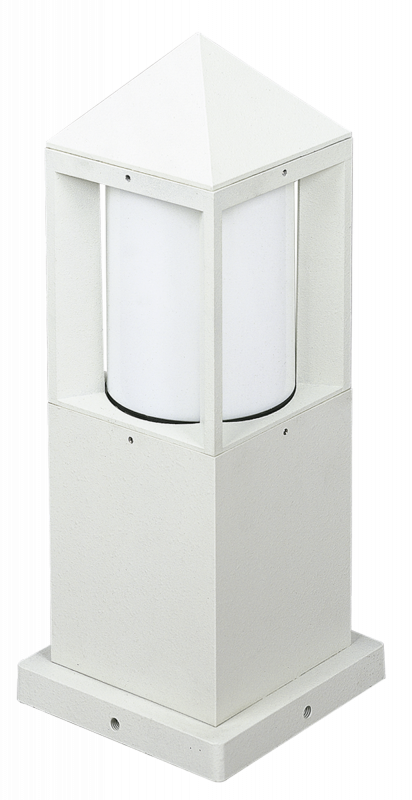

Base luminaire
type ..0556
€301,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |

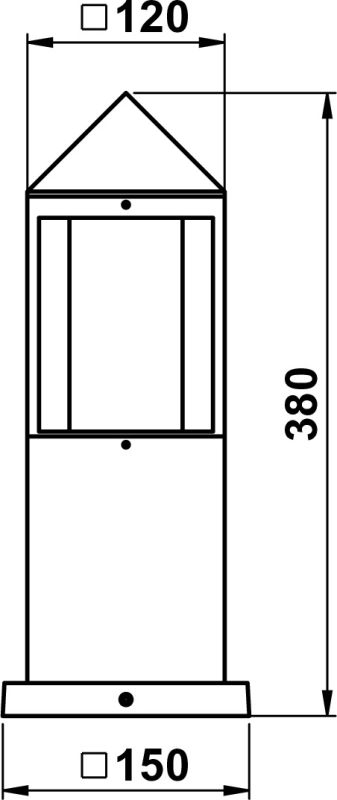

| Length | 120 mm |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Height | < 700 mm |
| Style | Modern |
| Light sharing | Symmetric |
| Light outlet | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Light outlet | 2-seitig |
| Max. system power | 75 W |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Width | 120 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Height/depth | 380 mm |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Type of wiring | Suitable for through wiring |
| With base plate | Yes |
| Shape | Eckig |
Documents and files
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |
| Length | 120 mm |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Height | < 700 mm |
| Style | Modern |
| Light sharing | Symmetric |
| Light outlet | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Light outlet | 2-seitig |
| Max. system power | 75 W |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Width | 120 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Height/depth | 380 mm |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Type of wiring | Suitable for through wiring |
| With base plate | Yes |
| Shape | Eckig |
Related products
-
Bollard light type ..2019excl. VAT
-

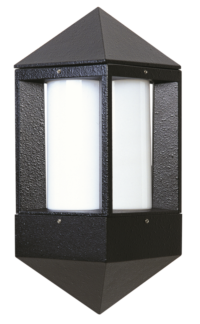

Wall light type ..0226excl. 19% VAT
-

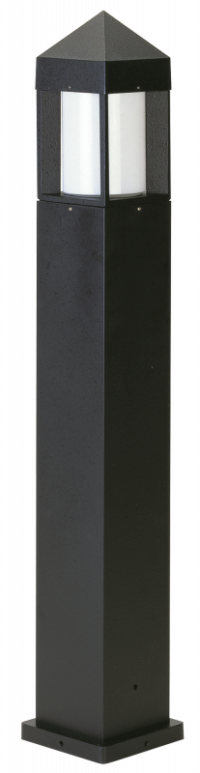

Bollard light type ..2241excl. VAT
-
