Article number Select a color, please

Bollard light

type ..2241

348,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Type of luminaire

Bollard luminaire

Height/depth

900 mm

Connection type

Screwed terminal

Power factor

1

Width

120 mm

Lowest energy efficiency class of the exchangeable lamp

E

Length

120 mm

Highest energy efficiency class of the exchangeable lamp

A++

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Not required

With base plate

Yes

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

Suitable for number of lamps

1

Shape

Eckig

Conductor cross section

2.5 mm²

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light type

Standleuchte

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Protection class

I

Max. system power

75 W

Style

Modern

Number of poles

3

Light output

2-seitig

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

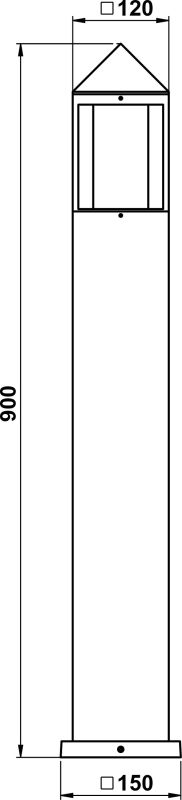

Dimensioned drawing
PDF | 102 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 662241
TXT | 304 B
Offertext
For: 682241
TXT | 303 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
