Article number 690224

Wall light

type ..0224

232,50

Description

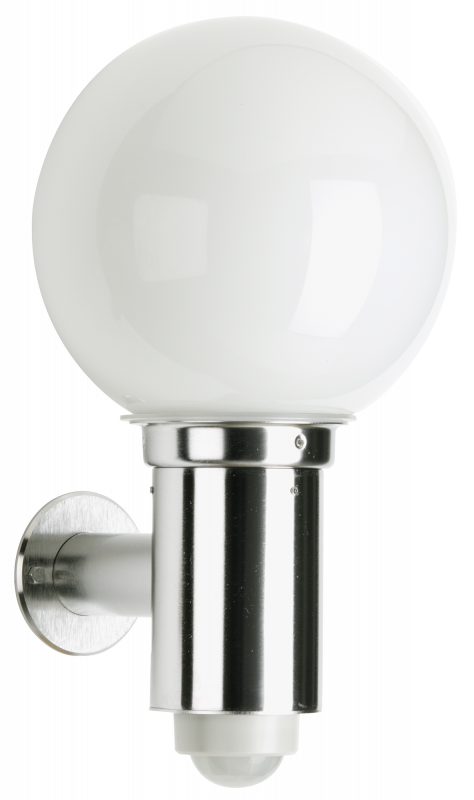

Albert wall light 690224 – with integrated motion detector –
made of stainless steel with opal glass sphere d 200 mm. Equipped for 1 x A60 75W, socket E 27.protection IP 44 – protection class : d 200 x 350 x 225 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

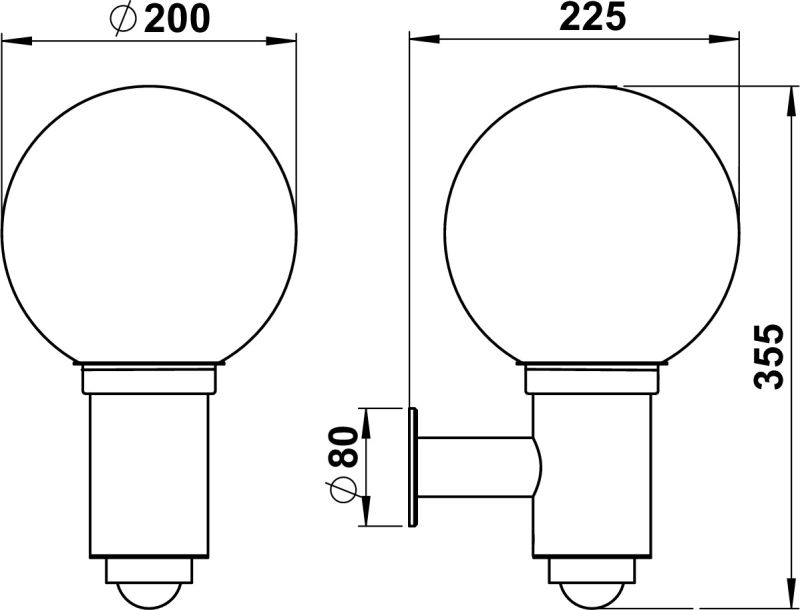

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210043 - G 43, glass sphere opal show
Accessories
691003 - Corner bracket type ..1003 show
90750100 - LED Retrofit Classic show

Additional information

Weight 1,80 kg
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Voltage type

AC

Suitable for number of lamps

1

Lamp holder

E27

Light output

Direct

Dimming phase cut-off

Yes

Type of control gear

Not required

Nominal voltage

230 V

Beam angle

Open beam/diffuse

Degree of protection (IP)

IP44

Dimming manufacturer's proprietary system

Yes

Colour housing

Stainless steel

Material cover

Glass opal

Dimming phase cut-on

Yes

Light output

1-seitig

With light sensor

Yes

With movement sensor

Yes

No dim function

Yes

Light sharing

Symmetric

Material housing

Stainless steel

Suitable for surface mounting

Yes

Type of wiring

Ending

Suitable for lamp power

1 – 75 W

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Coverage

360 °

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Mounting Type

Wand

Number of poles

3

Highest energy efficiency class of the exchangeable lamp

A++

Max. system power

75 W

Height/depth

350 mm

Suitable for wall mounting

Yes

Outer diameter

200 mm

Protection class

I

Connection type

Screwed terminal

Light type

Wandleuchte

Height

< 700 mm

Surface protection housing

Untreated

Power factor

1

Length

225 mm

Shape

Eckig
