Article number Select a color, please

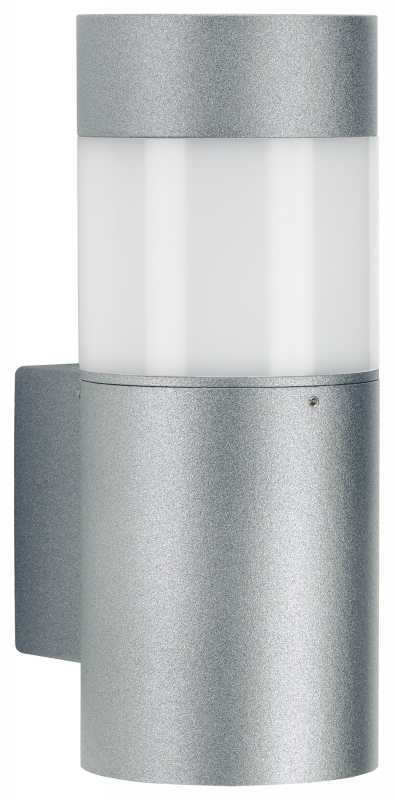

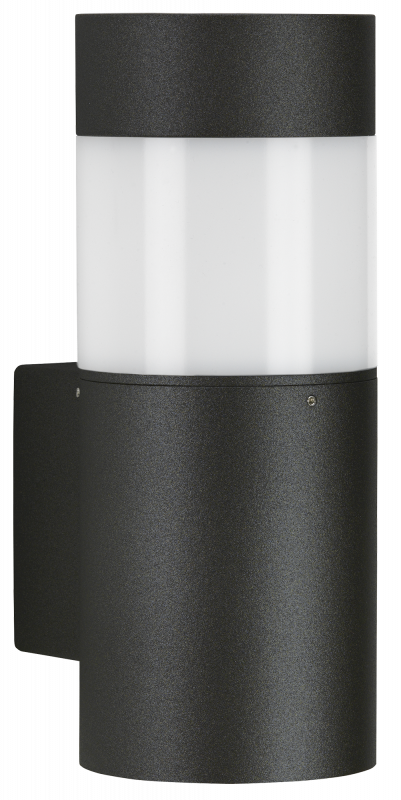

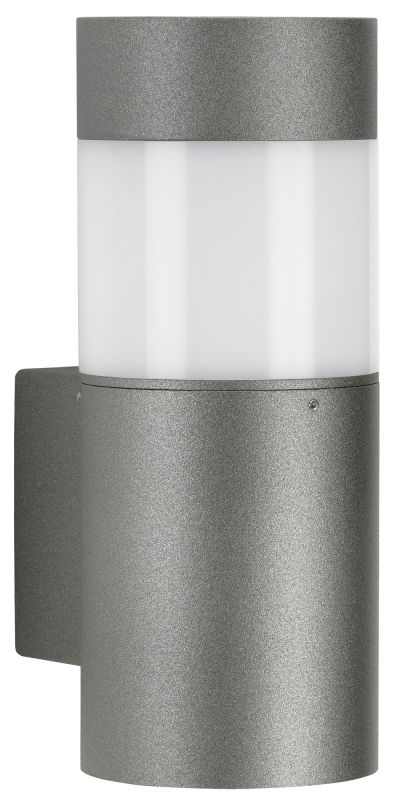

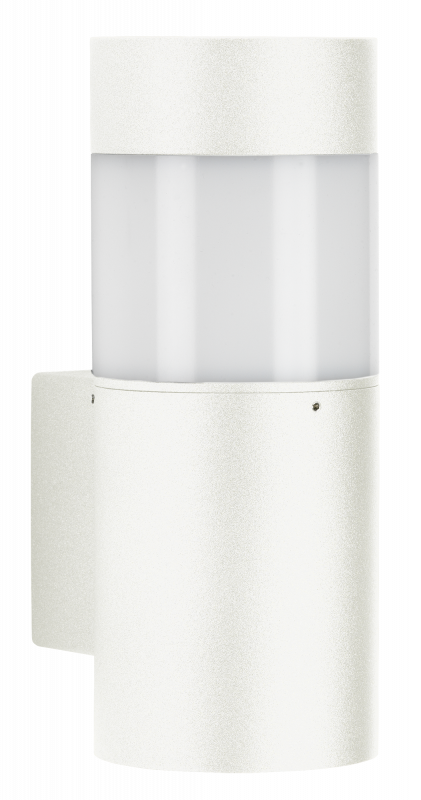

Wall light

type ..0274

344,90396,70

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
0.42361111111111 W
Rated luminous flux according to IEC 62722-2-1
1000 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Weight N/A
Suitable for wall mounting

Yes

Protection class

I

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming phase cut-off

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Degree of protection (IP)

IP54

Voltage type

AC

With control gear

No, Yes

Light output

1-seitig

Colour of light

White

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Impact strength

IK08

Lowest energy efficiency class of the exchangeable lamp

E

Surface protection housing

Lacquered

Rated life time L90/B10 at 25 °C

50000 h

Max. system power

10 W

Connection type

Screwed terminal

Light type

Wandleuchte

Height

< 700 mm

Length

145 mm

No dim function

Yes

Dimming depending on control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Outer diameter

100 mm

Mounting Type

Wand

Type of wiring

Ending

Number of poles

3

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Shape

Eckig

Style

Modern

Rated life time L80/B10 at 25 °C

50000 h

Rated life time L70/B50 at 25 °C

50000 h

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

0.5

Colour consistency (McAdam ellipse)

SDCM3

Stroboscope effect value SVM

0.6

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Height/depth

260 mm

Exchangeable control gear

No, Yes

Light sharing

Symmetric

Power factor

0.8

Documents and files
Data sheet
Assembly instruction
PDF | 75 KB

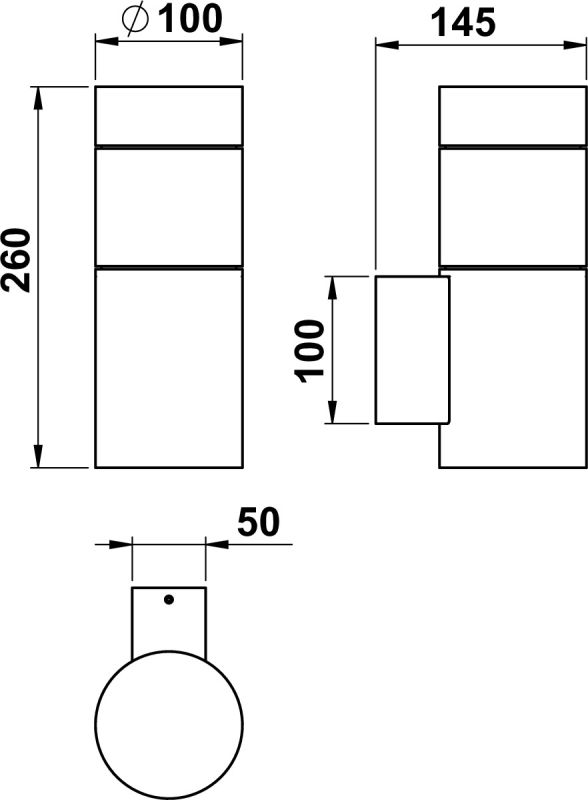

Dimensioned drawing
PDF | 93 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 620274
TXT | 190 B
Offertext
For: 660274
TXT | 184 B
Offertext
For: 680274
TXT | 184 B
Offertext
For: 690274
TXT | 185 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260503 - G-503, acrylic -tubes white show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620274
show
661002 - Corner bracket type ..1002, Black
Für: 660274
show
681002 - Corner bracket type ..1002, White
Für: 680274
show
691002 - Corner bracket type ..1002, Stainless steel
Für: 690274
show
