Article number Select a color, please

Bollard light

type ..2070

452,40520,40

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W, 1 - 75 W
Material cover
Plastic, opal
Documents and files
Assembly instruction

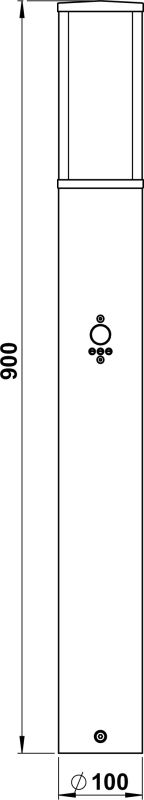

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
For: 622070
Light distribution curve - Eulumdat/LDT
For: 662070, 682070, 692070
Offertext
For: 662070
Offertext
For: 682070
Offertext
For: 692070
Offertext
For: 622070
Full catalog 21 / 22
For: 622070
Full catalog 21 / 22
For: 662070, 682070, 692070
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Type of wiring

Suitable for through wiring

Material cover

Plastic, opal

Colour housing

Anthracite, Black, Silver, White

Voltage type

AC

Nominal voltage

230 V

Lowest energy efficiency class of the exchangeable lamp

E

With base plate

Yes

With light sensor

Yes

With movement sensor

Yes

Surface protection

Lacquered

Conductor cross section

2.5 mm²

Suitable for lamp power

1 – 20 W, 1 – 75 W

Max. system power

20 W, 75 W

Power factor

1

Height/depth

900 mm

Lamp type

LED exchangeable

Suitable for number of lamps

1

Material housing

Aluminium

Light type

Standleuchte

Type of control gear

Not required

Lamp holder

E27

Number of poles

3

Height

700 – 1000 mm

Degree of protection (IP)

IP44

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light output

2-seitig

Diameter

100 mm

Connection type

Screwed terminal

Coverage

90 °

Highest energy efficiency class of the exchangeable lamp

A++

Protection class

I

Style

Bicolor, Modern

Shape

Eckig
