Article number Select a color, please

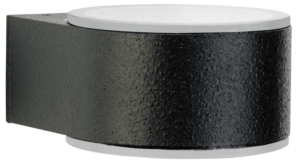

Wall light

type ..0234

283,10325,70

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing

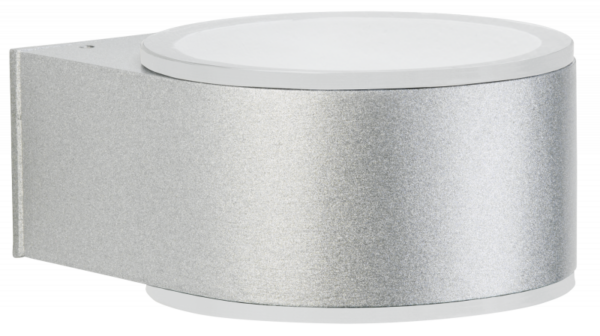

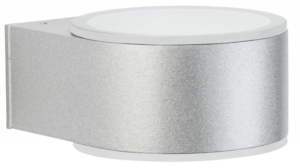

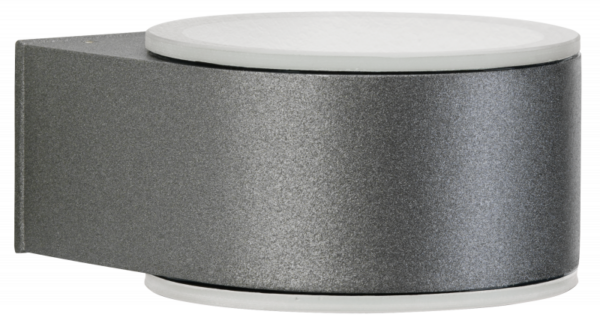

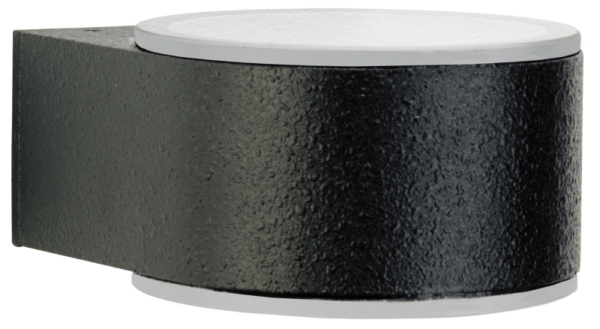

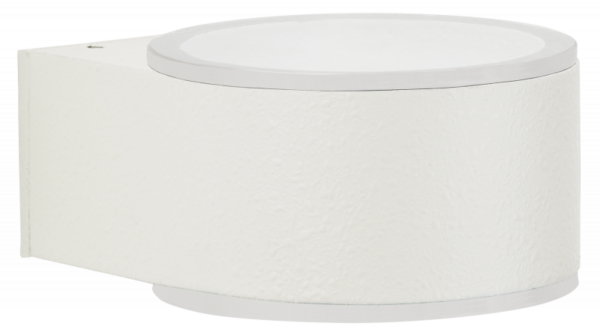

Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W, 6 W
Rated luminous flux according to IEC 62722-2-1
660 lm
Colour temperature
3000 K
Material cover
Glass structured
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Degree of protection (IP)

IP44

Suitable for surface mounting

Yes

Suitable for number of lamps

2

Length

115 mm

Light type

Wandleuchte

Voltage type

AC/DC

With control gear

Yes

Light output

Direct

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Max. system power

12 W, 6 W

Outer diameter

100 mm

Height/depth

60 mm

Light sharing

Symmetric

Highest energy efficiency class of the exchangeable lamp

A++

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Number of poles

3

Light output

1-seitig

Flickering value Pst LM

1

Style

Modern

Surface protection housing

Lacquered

Height

< 700 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Protection class

I

Power factor

0.9

Connection type

Screwed terminal

Colour of light

White

Mounting Type

Wand

Colour consistency (McAdam ellipse)

SDCM3

Max. number of luminaires per miniature circuit breaker B16

20

Type of wiring

Ending

Lowest energy efficiency class of the exchangeable lamp

E

Stroboscope effect value SVM

0.4

Dimming depending on control gear

Yes

Photobiological safety according to EN 62471

RG1

Exchangeable control gear

Yes

No dim function

Yes

Unified Glare Ratio (UGR)

1

Max. number of luminaires per miniature circuit breaker C16

30

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

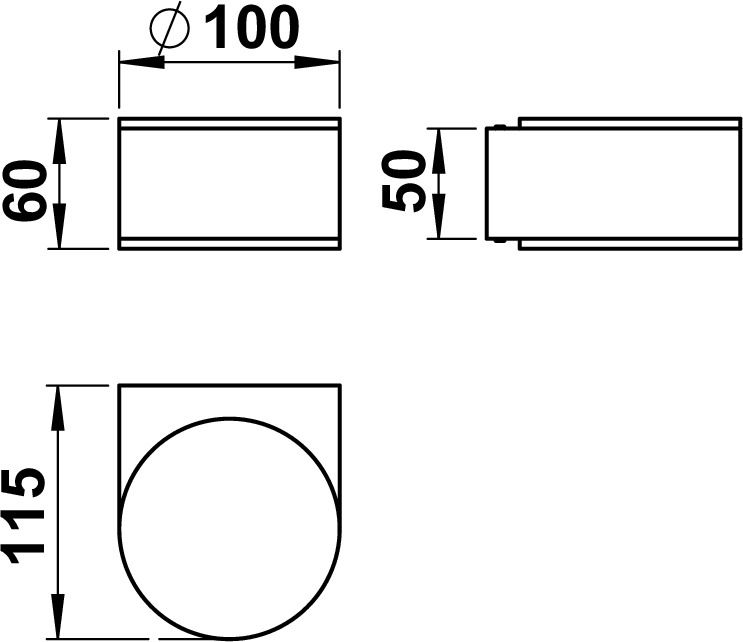

Dimensioned drawing
PDF | 100 KB
Light distribution curve - Eulumdat/LDT
LDT | 11 KB
Offertext
For: 620234
TXT | 276 B
Offertext
For: 660234
TXT | 281 B
Offertext
For: 680234
TXT | 281 B
Offertext
For: 690234
TXT | 265 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220483 - G 483, single-pane safety glass show
