Article number Select a color, please

Wall light with additional bottom light

type ..0321

229,70264,10

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
The reflector lamp is replaceable.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Plastic, opal
Documents and files
Assembly instruction

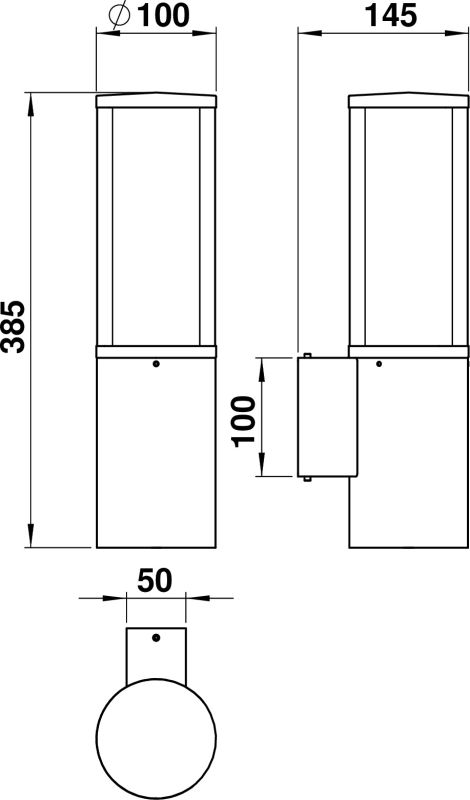

Dimensioned drawing
Light distribution curve
Offertext
For: 660321
Offertext
For: 680321
Offertext
For: 690321
Offertext
For: 620321
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620321
show
661002 - Corner bracket type ..1002, Black
Für: 660321
show
681002 - Corner bracket type ..1002, White
Für: 680321, 690321
show
90750105 - LED PAR 16 show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Nominal voltage

230 V

Colour housing

Anthracite, Black, Silver, White

Dimming manufacturer's proprietary system

Yes

Material housing

Aluminium, Stainless steel

Outer diameter

100 mm

Voltage type

AC

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

2

Lamp holder

E27

Lowest energy efficiency class of the exchangeable lamp

A

Material cover

Plastic, opal

Type of control gear

Not required

Conductor cross section

2.5 mm²

Suitable for lamp power

1 – 20 W

Max. system power

20 W

Power factor

1

Height/depth

385 mm

Length

145 mm

Connection type

Screwed terminal

Shape

Eckig

Type of wiring

Ending

Style

Bicolor, Modern

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Protection class

I

Number of poles

3

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Height

< 700 mm
