Article number 692011

Bollard light

type ..2011

503,00

Specifications

Albert bollard light 692011 – with integrated motion detector – made of stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : d 103 x 900 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 4,40 kg
Type of luminaire

Bollard luminaire

Type of wiring

Suitable for through wiring

Max. system power

75 W

Power factor

1

Light sharing

Symmetric

Nominal voltage

230 V

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Protection class

I

Voltage type

AC

Suitable for number of lamps

1

With base plate

Yes

Beam angle

Open beam/diffuse

Light type

Standleuchte

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Light output

Direct/indirect

Number of poles

3

Light output

2-seitig

Type of control gear

Not required

Height/depth

900 mm

Diameter

103 mm

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Lowest energy efficiency class of the exchangeable lamp

E

Coverage

90 °

Style

Edelstahl, Modern

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 85 KB

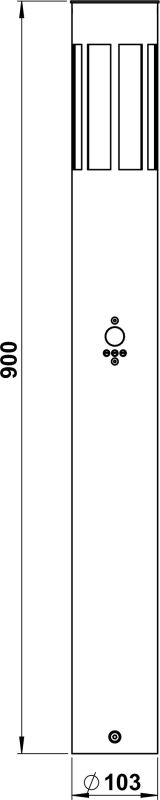

Dimensioned drawing
PDF | 84 KB
Instruction manual
PDF | 166 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show
