Data sheet
Article number
Select a color, please

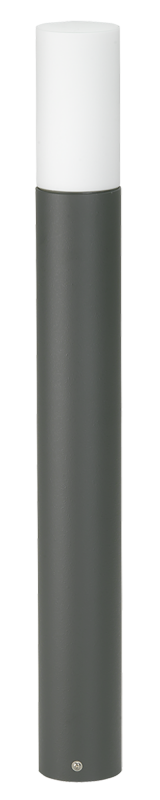

Bollard light
type ..2277
€275,70 – €319,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

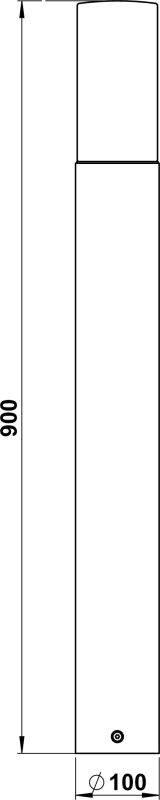

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622277
Offertext

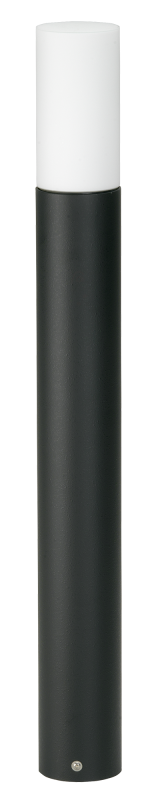

For: 662277
Offertext

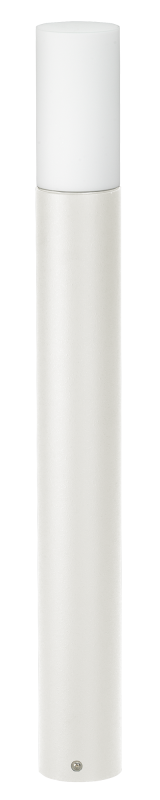

For: 682277
Offertext

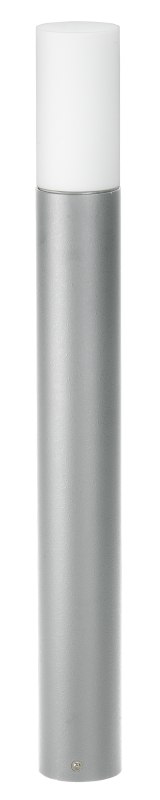

For: 692277
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Number of poles | 3 |
| Material housing | Aluminium |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Colour housing | Anthracite, Black, Silver, White |
| Colour temperature | 3000 K |
| Voltage type | AC |
| Nominal voltage | 230 V |
| With control gear | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Surface protection | Lacquered |
| Type of wiring | Suitable for through wiring |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| With base plate | Yes |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Colour rendering index CRI | 80-89 |
| Height/depth | 900 mm |
| Connection type | Screwed terminal |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP54 |
| Power factor | 0.9 |
| Diameter | 100 mm |
| Suitable for number of lamps | 1 |
| Protection class | I |
| Beam angle | Open beam/diffuse |
| Light type | Standleuchte |
| Height | 700 – 1000 mm |
| Suitable for lamp power | 10 W |
| Max. system power | 10 W |
| Rated luminous flux according to IEC 62722-2-1 | 900 lm |
| Colour of light | White |
| Style | Modern |
| Exchangeable control gear | Yes |
| Material cover | Glass opal |
| Light sharing | Symmetric |
| Conductor cross section | 2.5 mm² |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Light output | Direct/indirect |
| Light output | 2-seitig |
| Shape | Eckig |
Related products
-

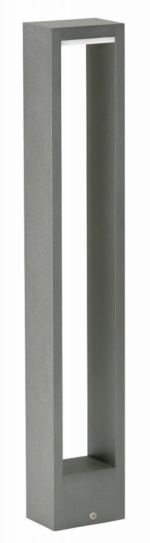

Bollard light type ..2242excl. VAT
-
