Article number Select a color, please

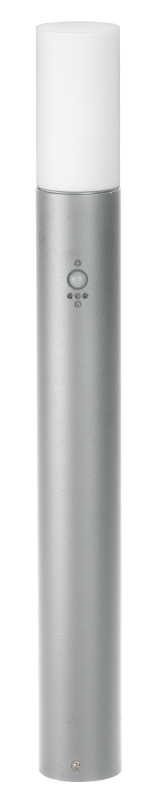

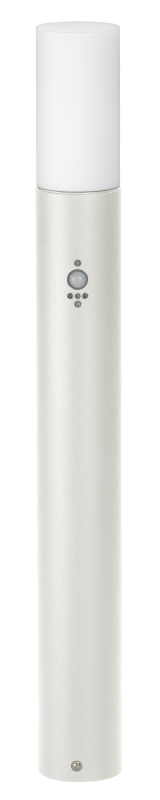

Bollard luminaire, with BWM

type ..2278

382,10439,20

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

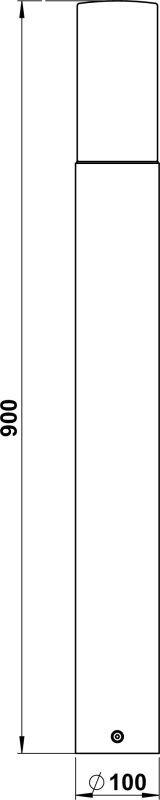

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 622278
Offertext
For: 662278
Offertext
For: 682278
Offertext
For: 692278
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Height/depth

900 mm

With movement sensor

Yes

Protection class

I

Highest energy efficiency class of the exchangeable lamp

A+

Colour housing

Anthracite, Black, Silver, White

Suitable for lamp power

10 W

Connection type

Screwed terminal

Lamp type

LED exchangeable

Surface protection

Lacquered

Material cover

Glass opal

With base plate

Yes

Colour rendering index CRI

80-89

Suitable for number of lamps

1

Rated luminous flux according to IEC 62722-2-1

900 lm

Colour of light

White

Number of poles

3

Conductor cross section

2.5 mm²

With light source

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

With light sensor

Yes

Exchangeable control gear

Yes

Light type

Standleuchte

Height

700 – 1000 mm

Material housing

Aluminium

Max. system power

10 W

Light output

Direct/indirect

Diameter

100 mm, 104 mm

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Light output

2-seitig

Type of wiring

Suitable for through wiring

Colour temperature

3000 K

Degree of protection (IP)

IP54

Power factor

0.9

Coverage

90 °

Style

Modern

Shape

Eckig
