Article number Select a color, please

Bollard light

type ..2015

319,40367,60

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Highest energy efficiency class of the exchangeable lamp

A++

Nominal voltage

230 V

Voltage type

AC

Surface protection

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

With base plate

Yes

Height/depth

835 mm

Connection type

Screwed terminal

Power factor

1

Width

150 mm

Type of control gear

Not required

Diameter

135 mm

Suitable for number of lamps

1

Light output

Direct/indirect

Light type

Standleuchte

Protection class

I

Max. system power

75 W

Style

Modern

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Height

700 – 1000 mm

Light sharing

Symmetric

Type of luminaire

Bollard luminaire

Light output

2-seitig

Degree of protection (IP)

IP44

Beam angle

Open beam/diffuse

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 92 KB

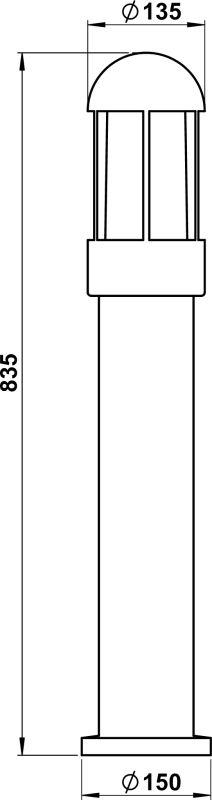

Dimensioned drawing
PDF | 19 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 662015
TXT | 287 B
Offertext
For: 682015
TXT | 287 B
Offertext
For: 692015
TXT | 264 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210096 - G 96, opal glass cylinder, matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show
