Data sheet
Article number
Select a color, please
Wall light
type ..0290
€312,40 – €359,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Surface protection housing | Lacquered |
| Colour of light | White |
| Connection type | Screwed terminal |
| Power factor | 0.9 |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Mounting method | Wand |
| Light outlet | 1-seitig |
| Number of poles | 3 |
| Beam angle | Open beam/diffuse |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light sharing | Symmetric |
| Shape | Eckig |
| Light type | Wandleuchte |
| Unified Glare Ratio (UGR) | 1 |
| Style | Modern |
| Stroboscope effect value SVM | 0.4 |
| Photobiological safety according to EN 62471 | RG1 |
| Exchangeable control gear | No, Yes |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |

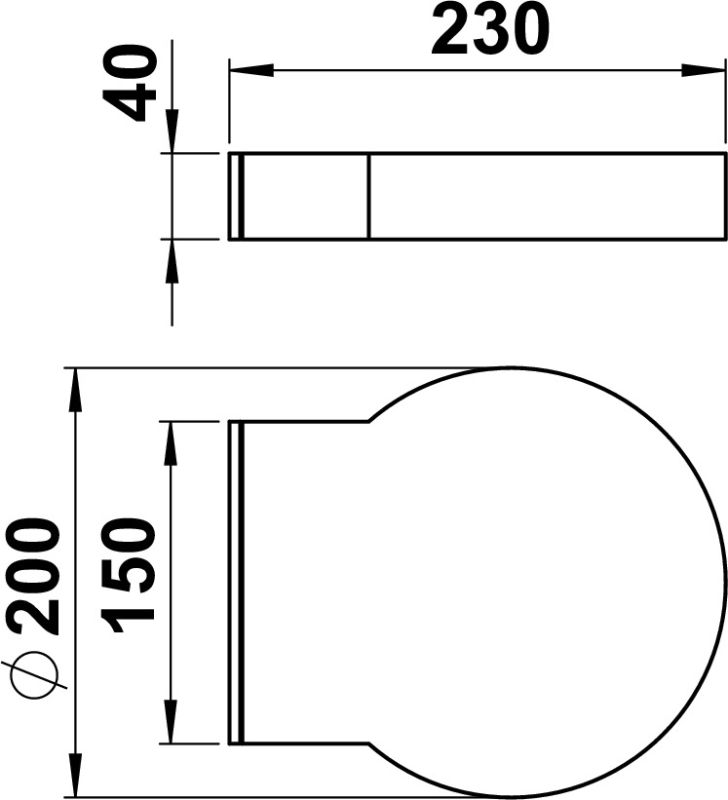

| Height | < 700 mm |
| Length | 230 mm |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Degree of protection (IP) | IP44 |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Dimming phase cut-off | Yes |
| Height/depth | 40 mm |
| Outer diameter | 200 mm |
| Max. system power | 16 W |
| Conductor cross section | 2.5 mm² |
| Colour rendering index CRI | 80-89 |
| Light outlet | Direct |
| With control gear | No, Yes |
| Voltage type | AC |
Documents and files
Spare parts
| 90270471 - G 471, Ronde acrylic | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Surface protection housing | Lacquered |
| Colour of light | White |
| Connection type | Screwed terminal |
| Power factor | 0.9 |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Mounting method | Wand |
| Light outlet | 1-seitig |
| Number of poles | 3 |
| Beam angle | Open beam/diffuse |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light sharing | Symmetric |
| Shape | Eckig |
| Light type | Wandleuchte |
| Unified Glare Ratio (UGR) | 1 |
| Style | Modern |
| Stroboscope effect value SVM | 0.4 |
| Photobiological safety according to EN 62471 | RG1 |
| Exchangeable control gear | No, Yes |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Height | < 700 mm |
| Length | 230 mm |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Degree of protection (IP) | IP44 |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Dimming phase cut-off | Yes |
| Height/depth | 40 mm |
| Outer diameter | 200 mm |
| Max. system power | 16 W |
| Conductor cross section | 2.5 mm² |
| Colour rendering index CRI | 80-89 |
| Light outlet | Direct |
| With control gear | No, Yes |
| Voltage type | AC |
