Article number Select a color, please

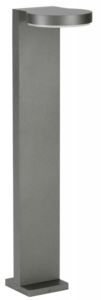

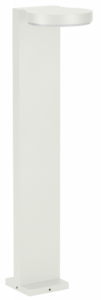

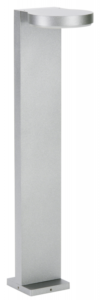

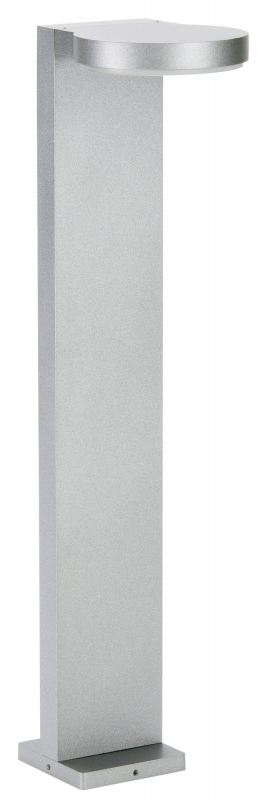

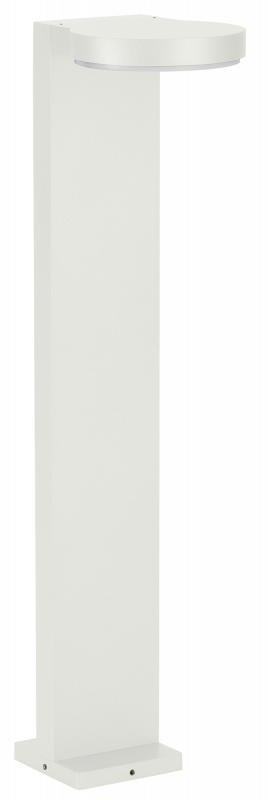

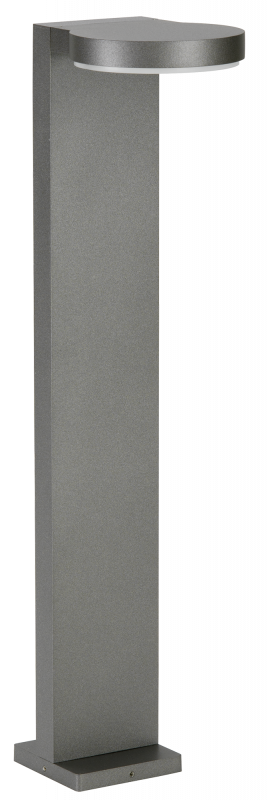

Bollard light

type ..2290

374,00430,30

Clear
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux acc. IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

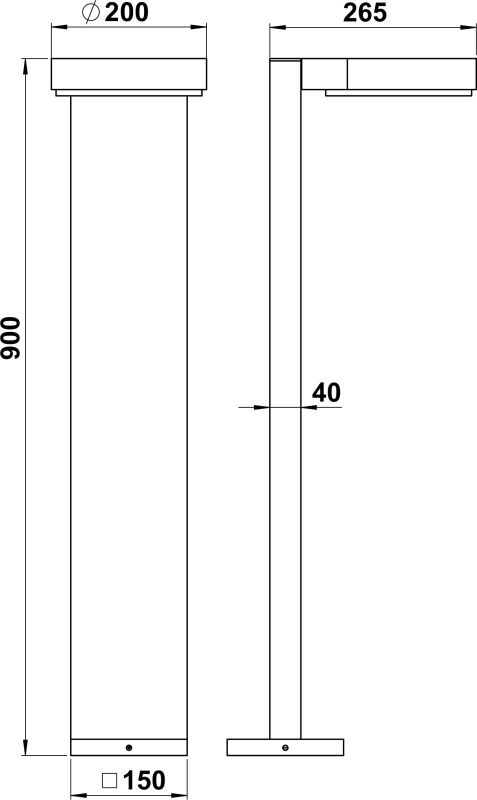

Dimensioned drawing
Light distribution curve
Offertext
For: 622290
Offertext
For: 662290
Offertext
For: 682290
Offertext
For: 692290
Full catalog 21 / 22
Spare parts
90270471 - G 471, Ronde acrylic show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Protection class

I

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

A+

Material cover

Plastic, opal

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Highest energy efficiency class of the exchangeable lamp

A+

Colour rendering index CRI

80-89

Control gear included

Yes

Nominal voltage

230 V

Lamp type

LED exchangeable

With light source

Yes

With base plate

Yes

Suitable for number of lamps

1

Max. system power

16 W

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP44

Power factor

0.9

Shape

Eckig

Light type

Standleuchte

Height/depth

900 mm

Lowest energy efficiency class of the exchangeable lamp

A+

Number of poles

3

Length

265 mm

Rated luminous flux acc. IEC 62722-2-1

1600 lm

Conductor cross section

2.5 mm²

Suitable for lamp power

16 W

Width

200 mm

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Colour of light

White

Colour temperature

3000 K

Height

700 – 1000 mm

Style

Modern
