Data sheet
Article number
Select a color, please

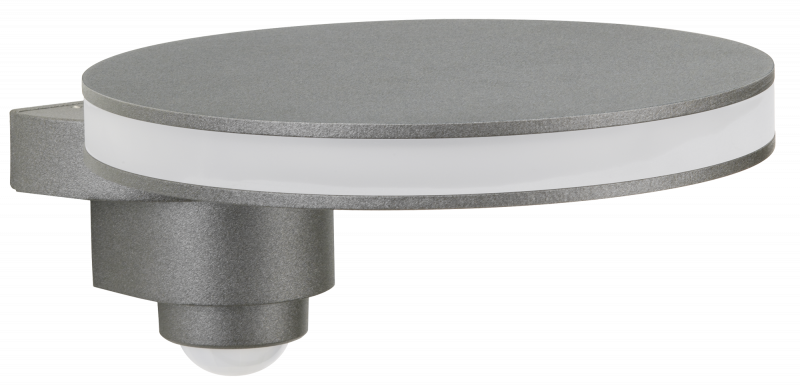

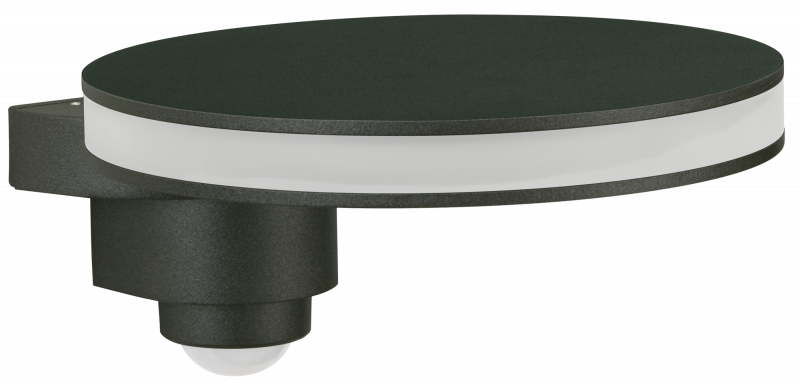

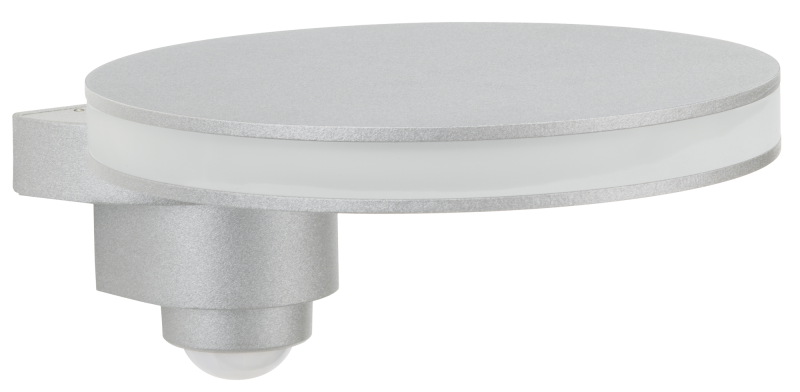

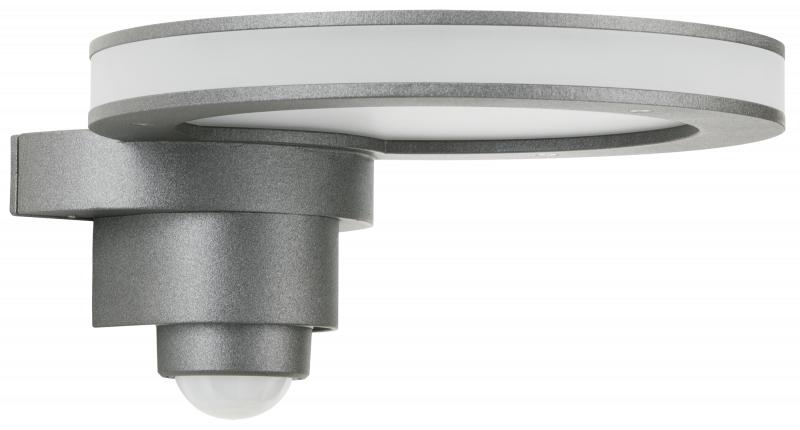

Wall light
type ..0296
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
| Weight | N/A |
|---|---|
| Lowest energy efficiency class of the exchangeable lamp | E |
| Power factor | 0.9 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Max. system power | 16 W |
| Mounting method | Wand |
| Light type | Wandleuchte |
| Light outlet | 1-seitig |
| Type of wiring | Ending |
| Connection type | Screwed terminal |
| Height | < 700 mm |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Colour rendering index CRI | 80-89 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Surface protection housing | Lacquered |
| Colour consistency (McAdam ellipse) | SDCM3 |

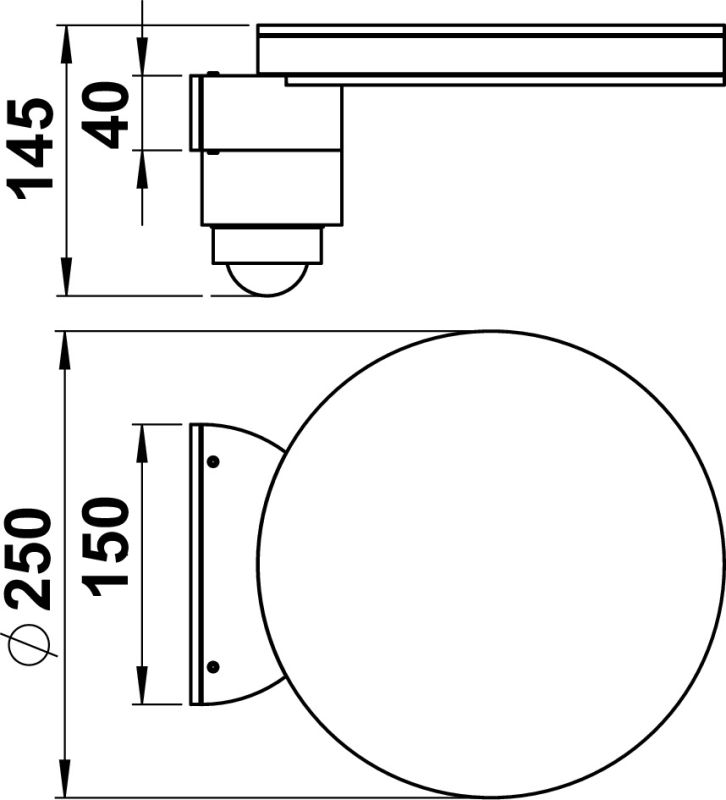

| Height/depth | 150 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Light outlet | Direct |
| Degree of protection (IP) | IP44 |
| Exchangeable control gear | No, Yes |
| Suitable for wall mounting | Yes |
| Length | 285 mm |
| Unified Glare Ratio (UGR) | 1 |
| Stroboscope effect value SVM | 0.4 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Conductor cross section | 2.5 mm² |
| Beam angle | Open beam/diffuse |
| Voltage type | AC |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Colour of light | White |
| With control gear | No, Yes |
| Dimming phase cut-off | Yes |
| No dim function | Yes |
| Number of poles | 3 |
| Dimming depending on control gear | Yes |
| Suitable for number of lamps | 1 |
| Coverage | 360 ° |
| Light sharing | Symmetric |
| Outer diameter | 250 mm |
| Suitable for surface mounting | Yes |
| Shape | Eckig |
Documents and files
Spare parts
| 90270477 - G 477, acrylic ring satin | show |
