Article number Select a color, please

Bollard light

type ..2269

303,60348,20

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W, 1 - 75 W
Material cover
Plastic, opal
Documents and files
Assembly instruction

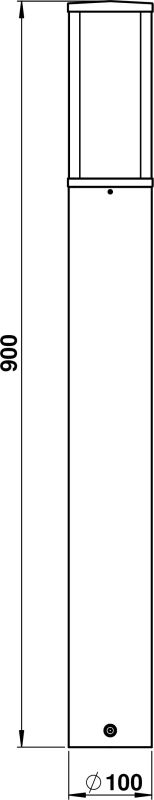

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
For: 622269
Light distribution curve - Eulumdat/LDT
For: 662269, 682269, 692269
Offertext
For: 662269
Offertext
For: 682269
Offertext
For: 692269
Offertext
For: 622269
Full catalog 21 / 22
For: 622269
Full catalog 21 / 22
For: 662269, 682269, 692269
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Surface protection

Lacquered

Lamp type

LED exchangeable

Suitable for number of lamps

1

Lamp holder

E27

Highest energy efficiency class of the exchangeable lamp

A++

Colour housing

Anthracite, Black, Silver, White

Material cover

Plastic, opal

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

With base plate

Yes

Material housing

Aluminium

Diameter

100 mm

Type of wiring

Suitable for through wiring

Protection class

I

Suitable for lamp power

1 – 20 W, 1 – 75 W

Max. system power

20 W, 75 W

Power factor

1

Height/depth

900 mm

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Style

Bicolor, Modern

Light type

Standleuchte

Height

700 – 1000 mm

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light output

2-seitig
