Data sheet
Article number 690635
Wall light
type ..0635
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

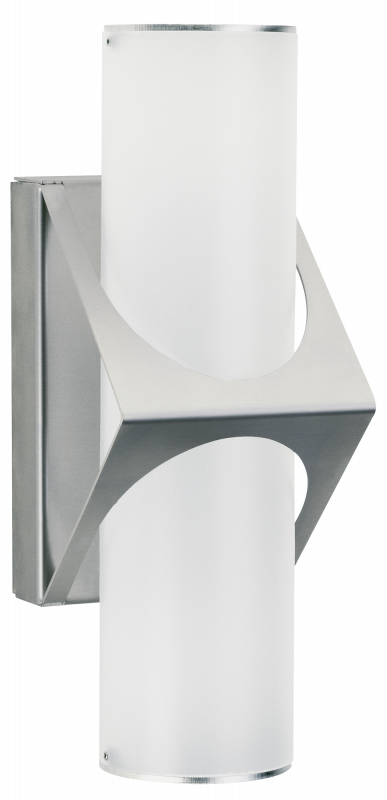

Albert wall lamp 690635
made of stainless steel with separate mounting plate as well as with satinized borosilicate glass. Equipped for 1 x fluorescent lamp TC-SEL 11 W, socket G7.protection class IP 44 – protection class : 100 x 300 x 130 mm
Features
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G23
Suitable for lamp power
10 W
Material cover
Plastic, structured
Documents and files
Assembly instruction

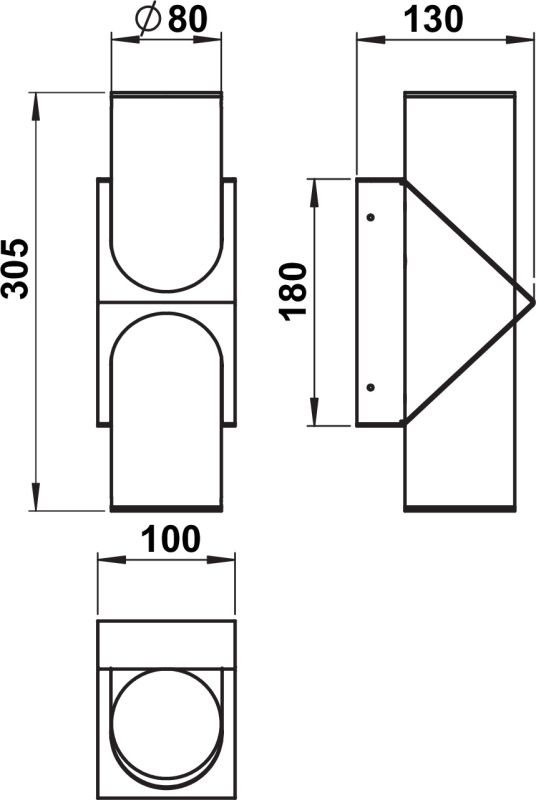

Dimensioned drawing
Full catalog 21 / 22
Spare parts
| 10260270 - G-270, acrylic satin finish, 300 mm | show |
Additional information
| Weight | 1,80 kg |
|---|---|
| Unified Glare Ratio (UGR) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Lamp holder | G23 |
| Suitable for number of lamps | 1 |
| Material housing | Stainless steel |
| Lamp type | Compact fluorescent lamp |
| Number of poles | 3 |
| Power factor | 1 |
| Colour housing | Stainless steel |
| Material cover | Plastic, structured |
| Voltage type | AC |
| Type of control gear | Low-loss ballast inductive |
| Nominal voltage | 230 V |
| With control gear | Yes |
| Conductor cross section | 2.5 mm² |
| Dimming depending on control gear | Yes |
| Light sharing | Symmetric |
| Height/depth | 305 mm |
| Length | 130 mm |
| Outer diameter | 80 mm |
| Type of wiring | Ending |
| Suitable for surface mounting | Yes |
| Suitable for lamp power | 10 W |
| Protection class | I |
| Light output | Direct |
| Height | < 700 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Surface protection housing | Untreated |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Max. system power | 11 W |
| No dim function | Yes |
| Connection type | Screwed terminal |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Suitable for wall mounting | Yes |
| Light output | 1-seitig |
| Exchangeable control gear | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Shape | Eckig |
