Article number Select a color, please

Base luminaire

type ..0508

223,90257,60

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W, 1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

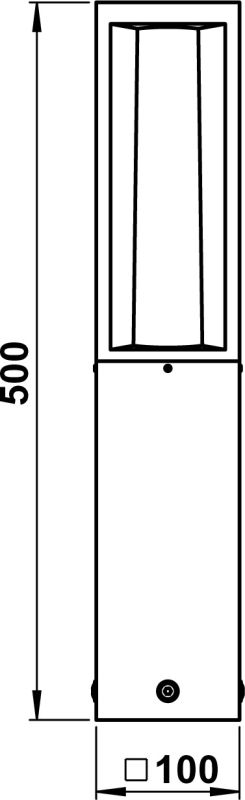

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660508
Offertext
For: 680508
Offertext
For: 690508
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Material housing

Aluminium

With base plate

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Material cover

Glass opal

Colour housing

Black, Silver, White

Highest energy efficiency class of the exchangeable lamp

A++

Surface protection

Lacquered

Lamp holder

E27

Suitable for number of lamps

1

Lamp type

LED exchangeable

Lowest energy efficiency class of the exchangeable lamp

E

Height/depth

500 mm

Shape

Eckig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Length

100 mm

Width

100 mm

Power factor

1

Max. system power

20 W, 75 W

Suitable for lamp power

1 – 20 W, 1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

< 700 mm

Style

Modern

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light output

2-seitig
