Data sheet
Article number
Select a color, please

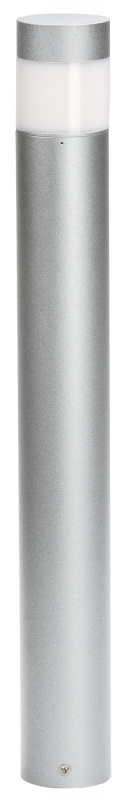

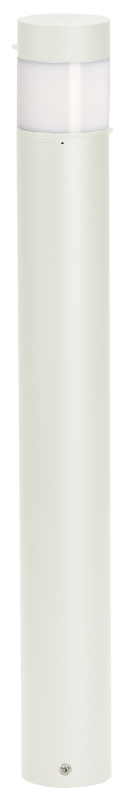

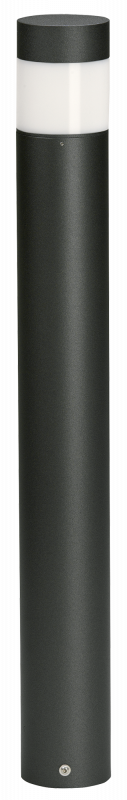

Bollard light, 360 degrees, symmetrical
type no. 622294
€370,10 – €425,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
1000 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

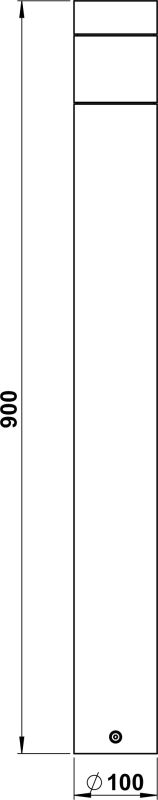

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622294
Offertext
For: 662294
Offertext
For: 682294
Offertext
For: 692294
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Diameter | 100 mm |
| Colour housing | Anthracite, Black, Silver, White |
| Surface protection | Lacquered |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Material cover | Plastic, opal |
| Voltage type | AC |
| Type of control gear | Not required |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Colour temperature | 3000 K |
| Lamp type | LED exchangeable |
| Number of poles | 3 |
| With light source | Yes |
| With base plate | Yes |
| Suitable for number of lamps | 1 |
| Suitable for lamp power | 10 W |
| Type of wiring | Suitable for through wiring |
| Degree of protection (IP) | IP54 |
| Colour rendering index CRI | 80-89 |
| Light type | Standleuchte |
| Height/depth | 900 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Nominal voltage | 230 V |
| Material housing | Aluminium |
| Light sharing | Symmetric |
| Impact strength | IK08 |
| Light output | Direct/indirect |
| Power factor | 0.8 |
| Connection type | Screwed terminal |
| Rated luminous flux according to IEC 62722-2-1 | 1000 lm |
| Colour of light | White |
| Height | 700 – 1000 mm |
| Style | Modern |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Conductor cross section | 2.5 mm² |
| Beam angle | Open beam/diffuse |
| Max. system power | 10 W |
| Flickering value Pst LM | 0.5 |
| Stroboscope effect value SVM | 0.6 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Protection class | I |
| Light output | 2-seitig |
| Shape | Eckig |
Related products
-

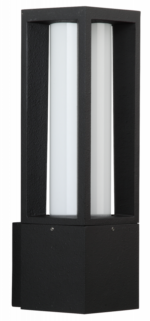

Wall light type ..0213excl. VAT
-
