Wall light

Name: Wall light type ..0699
SKU: TYPE-0699-6-2-0699
Price: 324.00 EUR
Availability: InStock

type ..0699

€324,00

Manufacturer's Suggested Retail Price excl. VAT

Colour housing	Clear

Features

Luminaire has IP 44 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire is equipped with increased or additional overvoltage protection.

Material housing

Aluminium

Colour housing

Black, White

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

12 W

Rated luminous flux according to IEC 62722-2-1

1200 lm

Colour temperature

3000 K

Material cover

Glass transparent

Weight	N/A
Suitable for wall mounting	Yes
Suitable for surface mounting	Yes
Voltage type	AC
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Protection class	I
Dimming phase cut-off	Yes
No dim function	Yes

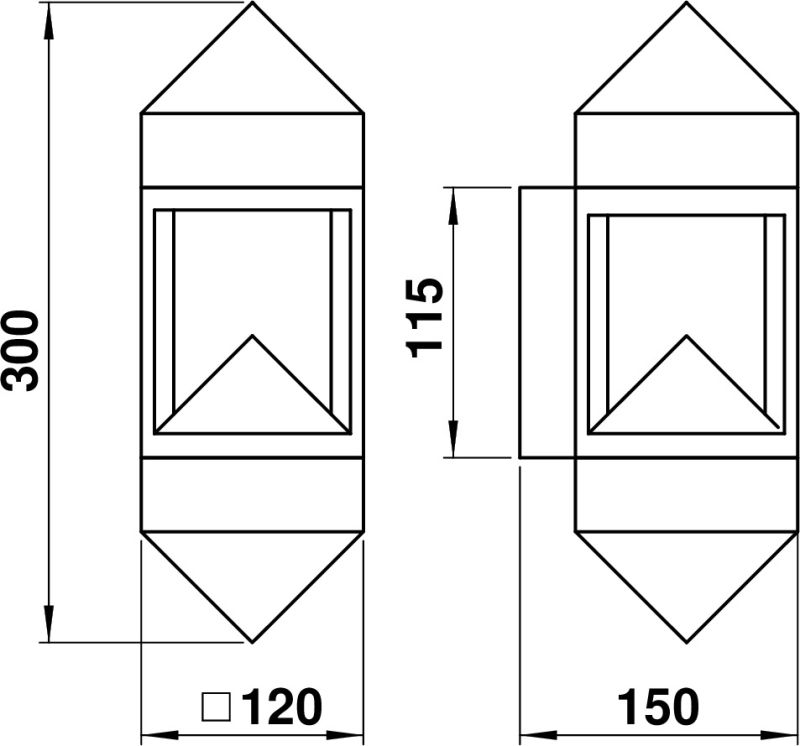

Height/depth	300 mm
Nominal voltage	230 V
Suitable for number of lamps	1
Type of control gear	LED operating device voltage-controlled
Colour rendering index CRI	80-89
Colour of light	White
Length	150 mm
Style	Modern
Flickering value Pst LM	1
Mounting method	Wand
Dimming depending on control gear	Yes
Light sharing	Symmetric
Width	120 mm
Beam angle	Open beam/diffuse
Light outlet	1-seitig
Photobiological safety according to EN 62471	RG1
Power factor	0.9
Energy efficiency class of the provided exchangeable built-in lamp	E
Degree of protection (IP)	IP44
Light outlet	Direct
Connection type	Screwed terminal
Max. system power	12 W
Number of poles	3
Max. number of luminaires per miniature circuit breaker C16	30
Light type	Wandleuchte
Lowest energy efficiency class of the exchangeable lamp	E
Shape	Eckig
Type of wiring	Ending
Surface protection housing	Lacquered
Height	< 700 mm
Conductor cross section	2.5 mm²
Colour consistency (McAdam ellipse)	SDCM3
Highest energy efficiency class of the exchangeable lamp	A++
Stroboscope effect value SVM	0.4
Max. number of luminaires per miniature circuit breaker B16	20
Unified Glare Ratio (UGR)	1
