Article number Select a color, please

Wall light

type ..6168

195,30224,50

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-3
Suitable for lamp power
26 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Suitable for surface mounting

Yes

Connection type

Screwed terminal

Voltage type

AC/DC

Type of control gear

Low-loss ballast inductive

Nominal voltage

230 V

With control gear

Yes

Power factor

1

Beam angle

Open beam/diffuse

Height/depth

100 mm

Length

100 mm

Type of wiring

Ending

Number of poles

3

Max. system power

26 W

Degree of protection (IP)

IP44

Height

< 700 mm

Photobiological safety according to EN 62471

RG1

Surface protection housing

Lacquered

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

No dim function

Yes

Width

150 mm

Protection class

I

Light output

Direct

Exchangeable control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Light sharing

Symmetric

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 36 KB

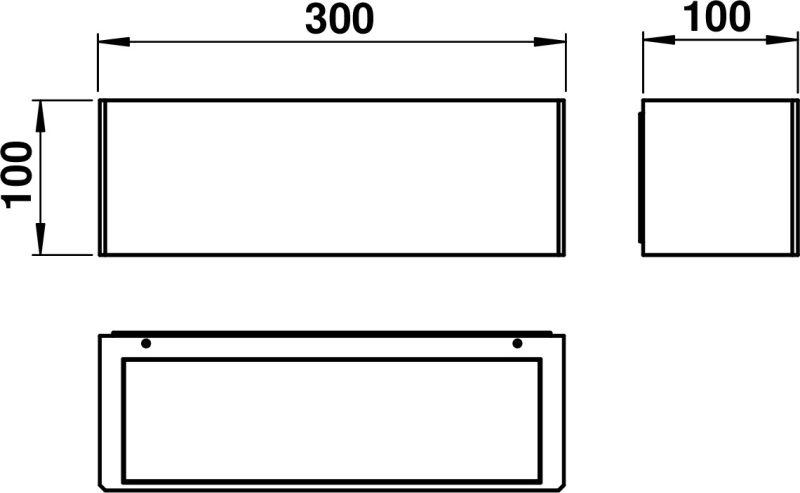

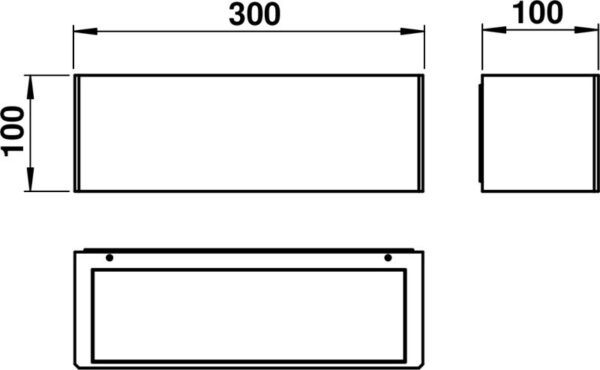

Dimensioned drawing
PDF | 15 KB
Offertext
For: 666168
TXT | 231 B
Offertext
For: 686168
TXT | 231 B
Offertext
For: 696168
TXT | 208 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220378 - G 378, frosted flashed glass ESG show
