Article number 696188

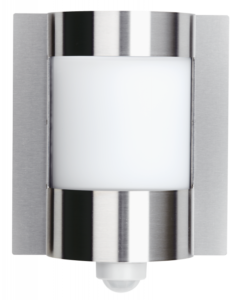

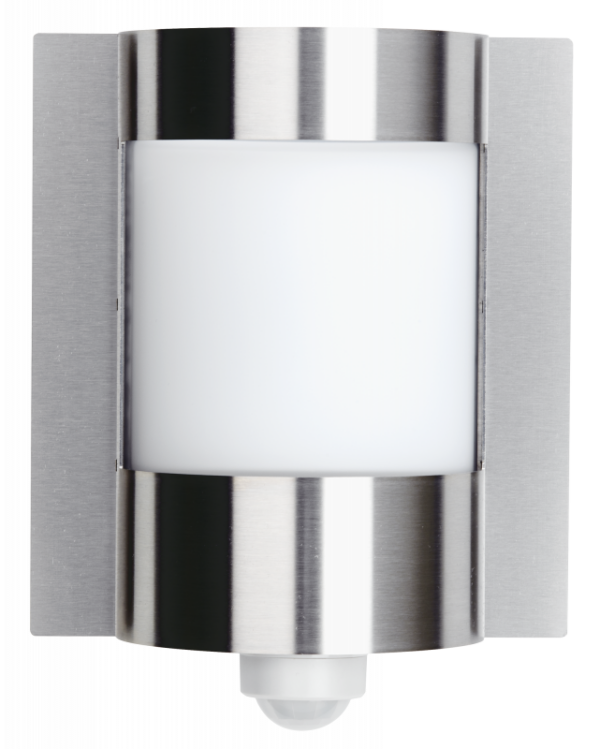

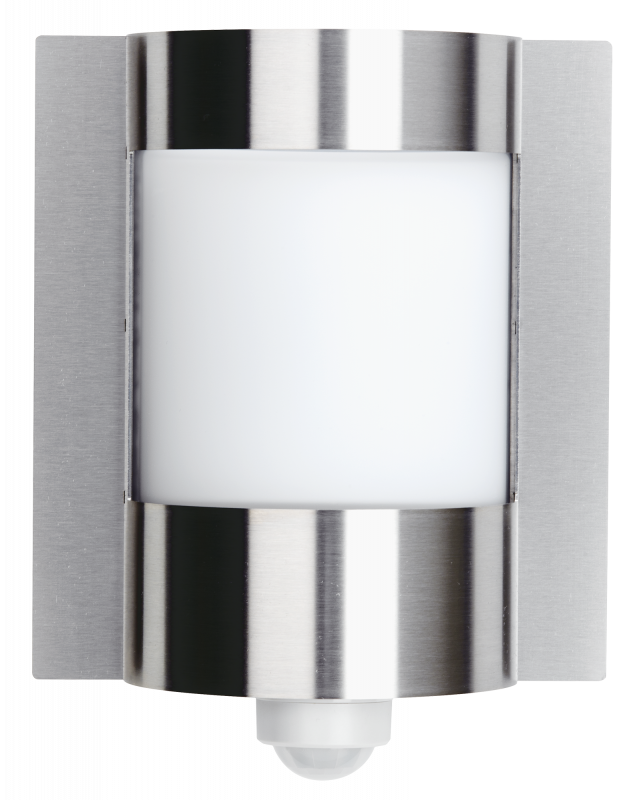

Wall light

type ..6188

257,00

Description

– with integrated motion detector -made of stainless steel with opal glass, with separate mounting plate made of cast aluminium. Suitable for 1 x incandescent lamp A60 75W,socket E27.protection class IP 44 – protection class : 250 x 305 x 110 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

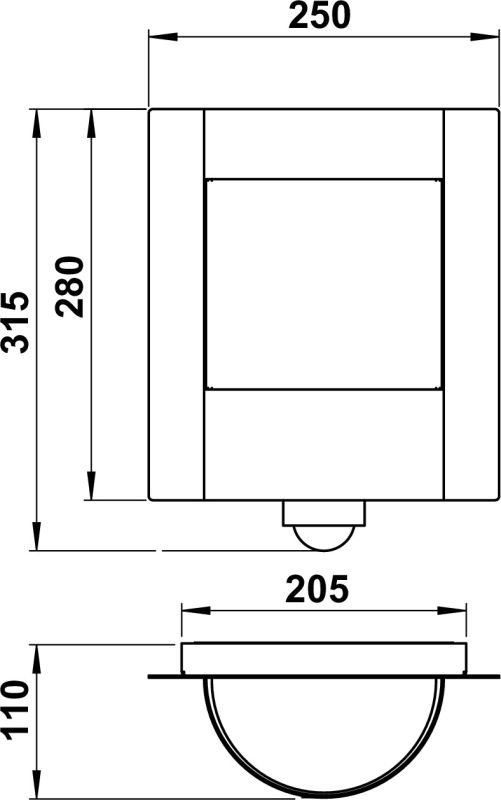

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210118 - G 118, opal glass matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 3,00 kg
Light type

Wandleuchte

Dimming phase cut-on

Yes

Width

250 mm

With movement sensor

Yes

Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Degree of protection (IP)

IP44

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Light sharing

Symmetric

Lamp holder

E27

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Mounting Type

Wand

Power factor

1

Suitable for number of lamps

1

Nominal voltage

230 V

Height/depth

315 mm

Suitable for surface mounting

Yes

Beam angle

Open beam/diffuse

Number of poles

3

Dimming depending on control gear

Yes

No dim function

Yes

Protection class

I

Suitable for wall mounting

Yes

Type of wiring

Ending

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Coverage

360 °

Unified Glare Ratio (UGR)

1

Light output

Direct

With light sensor

Yes

Length

110 mm

Style

Edelstahl, Modern

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height

< 700 mm

Surface protection housing

Untreated

Conductor cross section

2.5 mm²

Light output

1-seitig

Photobiological safety according to EN 62471

RG1

Shape

Eckig
