Weight	N/A
Suitable for wall mounting	Yes
Number of poles	3
Voltage type	AC
Nominal voltage	230 V
Type of control gear	LED operating device voltage-controlled
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Beam angle	Open beam/diffuse
Dimming phase cut-off	Yes
With control gear	No, Yes
Suitable for number of lamps	1
Light sharing	Symmetric
Type of wiring	Ending

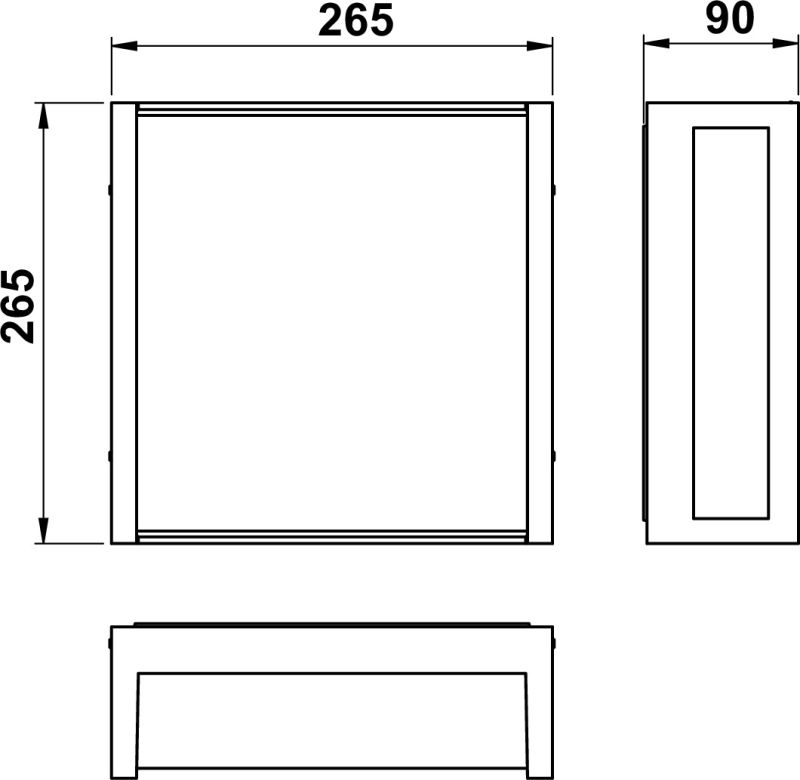

Width	265 mm
Colour rendering index CRI	80-89
Power factor	0.9
Surface protection housing	Lacquered
Mounting method	Decke, Wand
No dim function	Yes
Light outlet	Direct
Length	90 mm
Energy efficiency class of the provided exchangeable built-in lamp	E
Light outlet	1-seitig
Shape	Eckig
Conductor cross section	2.5 mm²
Height/depth	265 mm
Protection class	I
Degree of protection (IP)	IP44
Connection type	Screwed terminal
Colour of light	White
Max. system power	10 W
Dimming depending on control gear	Yes
Light type	Wandleuchte
Height	< 700 mm
Photobiological safety according to EN 62471	RG1
Colour consistency (McAdam ellipse)	SDCM3
Highest energy efficiency class of the exchangeable lamp	A++
Lowest energy efficiency class of the exchangeable lamp	E
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C16	30
Flickering value Pst LM	1
Exchangeable control gear	No, Yes
Stroboscope effect value SVM	0.4
Style	Edelstahl, Modern
Unified Glare Ratio (UGR)	1

Wall light
