Article number 690546

Base luminaire

type ..0546

400,70

Description

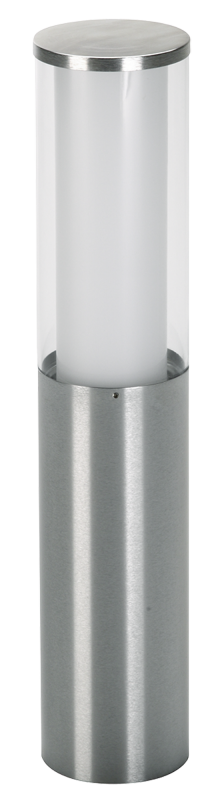

Albert base luminaire 690546 made of stainless steel with opal glass and clear acrylic glass cylinder. Designed for 1 x lamp max. 18W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 100 x 500 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

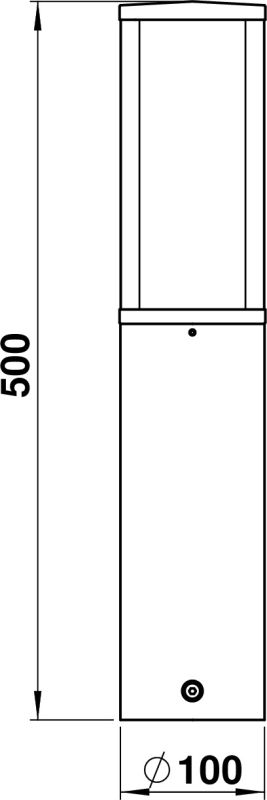

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,60 kg
Light output

2-seitig

Nominal voltage

230 V

Style

Edelstahl, Modern

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Type of control gear

Not required

Voltage type

AC

Material cover

Glass opal

Colour housing

Stainless steel

Material housing

Stainless steel

Lamp holder

E27

Suitable for number of lamps

1

Lamp type

LED exchangeable

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Number of poles

3

Type of wiring

Suitable for through wiring

Height

< 700 mm

Diameter

100 mm

Max. system power

20 W

Type of luminaire

Pedestal luminaire

Suitable for lamp power

1 – 20 W

Protection class

I

Degree of protection (IP)

IP44

Light output

Direct/indirect

Housing material quality

Stainless steel 304 (V2A)

Height/depth

500 mm

Light sharing

Symmetric

Power factor

1

Beam angle

Open beam/diffuse

Shape

Eckig
