Article number 690557

Base luminaire

type ..0557

302,40

Specifications

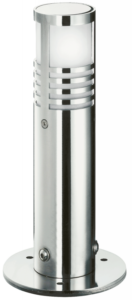

Albert base luminaire 690557 in stainless steel, with borosilicate glass. Equipped for 1 mains voltage halogen lamp QT 14 40 Watt, socket G9. Ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 120 x d 60 x 250 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
1 - 60 W
Material cover
Glass structured
Weight 2,60 kg
Conductor cross section

2.5 mm²

Voltage type

AC

Nominal voltage

230 V

Max. system power

60 W

Type of control gear

Not required

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

250 mm

Diameter

60 mm

Protection class

I

Suitable for number of lamps

1

With base plate

Yes

Type of luminaire

Pedestal luminaire

Housing material quality

Stainless steel 304 (V2A)

Width

110 mm

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Type of wiring

Suitable for through wiring

Number of poles

3

Light output

2-seitig

Connection type

Screwed terminal

Style

Edelstahl, Modern

Height

< 700 mm

Power factor

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

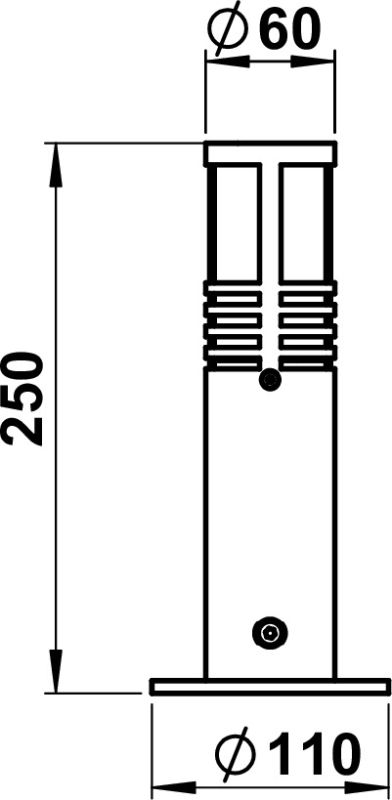

Dimensioned drawing
PDF | 20 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210294 - G 294, glass tube borosilicate show
Accessories
690010 - Earth mounting base type ..0010 show
90750103 - LED Pin show
