Article number 696350

Wall and ceiling light

type ..6350

325,30

Description

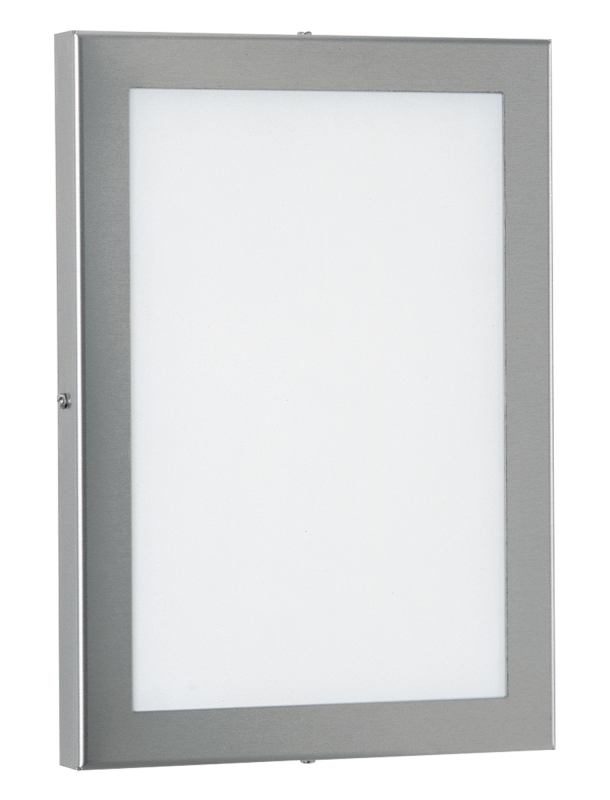

Albert wall and ceiling light 696350
made of stainless steel with opal pane glass.1 x LED 20 W, warm white 3000 K, 2200 IP 44 – protection class : 225 x 320 x 65 mm

Features
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
1 - 20 W
Rated luminous flux according to IEC 62722-2-1
2200 lm
Colour temperature
3000 K
Material cover
Glass structured
Documents and files
Assembly instruction

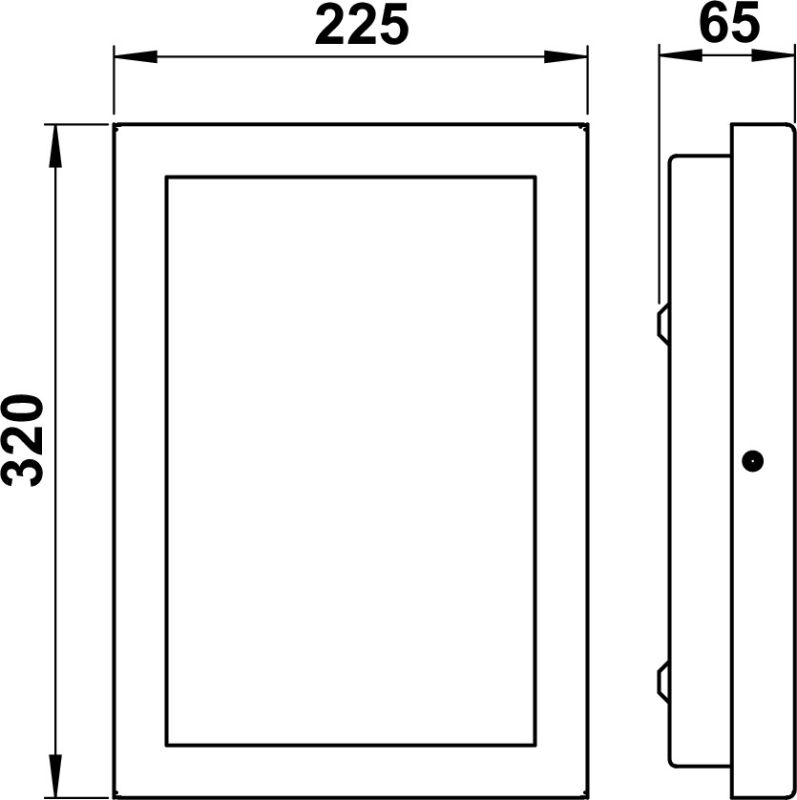

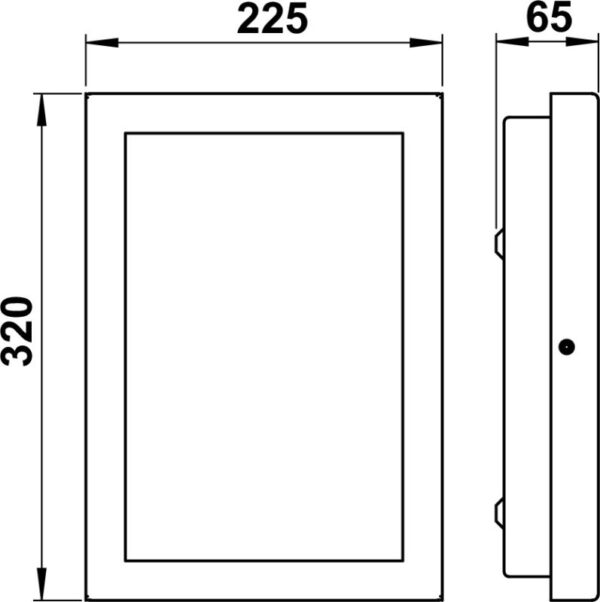

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220334 - G 334, milk flashed glass show

Additional information

Weight 3.20 kg
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Material housing

Stainless steel

With light source

Yes

Colour housing

Stainless steel

Light sharing

Symmetric

Height/depth

320 mm

Dimming phase cut-off

Yes

Lamp type

LED exchangeable

Material cover

Glass structured

Voltage type

AC

No dim function

Yes

With control gear

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour rendering index CRI

80-89

Dimming depending on control gear

Yes

Power factor

0.9

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Colour of light

White

Rated luminous flux according to IEC 62722-2-1

2200 lm

Width

225 mm

Nominal voltage

230 V

Length

65 mm

Height

< 700 mm

Surface protection housing

Untreated

Conductor cross section

2.5 mm²

Protection class

I

Max. system power

20 W

Degree of protection (IP)

IP54

Type of wiring

Suitable for through wiring

Connection type

Screwed terminal

Light output

Direct

Beam angle

Open beam/diffuse

Colour temperature

3000 K

Shape

Eckig

Style

Edelstahl, Modern

Mounting Type

Decke, Wand

Light output

1-seitig

Number of poles

3

Suitable for lamp power

1 – 20 W

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
