Data sheet
Article number
Select a color, please
Bollard light
type ..2016
€370,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
0 - 80 W
Material cover
Glass transparent
Documents and files
Assembly instruction

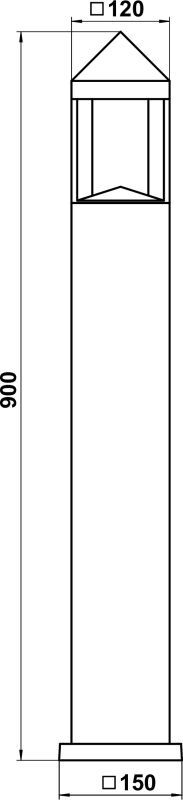

Dimensioned drawing
Offertext
For: 662016
Offertext
For: 682016
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Light type | Standleuchte |
| With base plate | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour housing | Black, White |
| Material cover | Glass transparent |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Type of control gear | Not required |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Lamp type | HV halogen lamp |
| Height/depth | 900 mm |
| Connection type | Screwed terminal |
| Power factor | 1 |
| Width | 120 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Suitable for number of lamps | 1 |
| Lamp holder | R7s |
| Length | 120 mm |
| Type of luminaire | Bollard luminaire |
| Light output | Indirect |
| Height | 700 – 1000 mm |
| Protection class | I |
| Suitable for lamp power | 0 – 80 W |
| Max. system power | 80 W |
| Style | Modern |
| Number of poles | 3 |
| Type of wiring | Suitable for through wiring |
| Degree of protection (IP) | IP44 |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Conductor cross section | 2.5 mm² |
| Shape | Eckig |
