Article number Select a color, please

Wall light

type ..0671

250,40287,90

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Voltage type

AC/DC

Protection class

I

No dim function

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

With control gear

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Suitable for number of lamps

1

Height/depth

190 mm

Colour rendering index CRI

80-89

Colour of light

White

Length

115 mm

Light type

Wandleuchte

Exchangeable control gear

Yes

Shape

Eckig

Dimming depending on control gear

Yes

Light sharing

Symmetric

Width

100 mm

Beam angle

Open beam/diffuse

Light output

1-seitig

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Style

Bicolor, Modern

Power factor

0.9

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP43

Light output

Direct

Connection type

Screwed terminal

Max. system power

10 W

Mounting Type

Wand

Number of poles

3

Max. number of luminaires per miniature circuit breaker B16

20

Type of wiring

Ending

Surface protection housing

Lacquered

Height

< 700 mm

Conductor cross section

2.5 mm²

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 62 KB

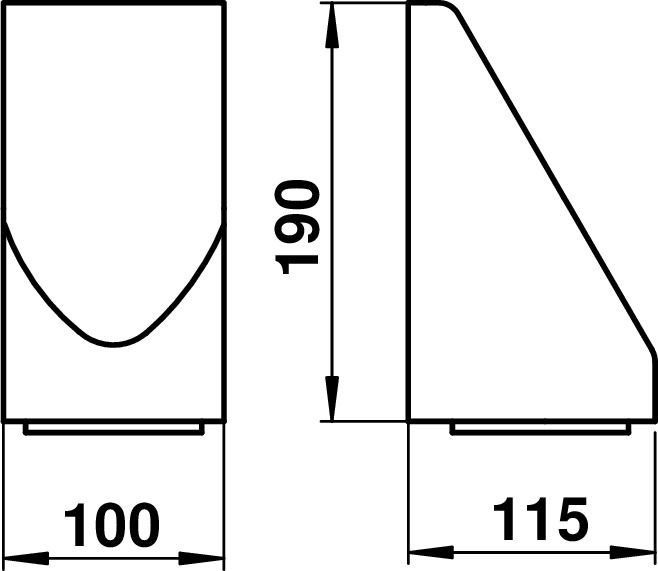

Dimensioned drawing
PDF | 23 KB
Light distribution curve - Eulumdat/LDT
LDT | 20 KB
Offertext
For: 660671
TXT | 276 B
Offertext
For: 680671
TXT | 276 B
Offertext
For: 690671
TXT | 253 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210048 - G 48, bubble glass insert clear show
