Article number Select a color, please

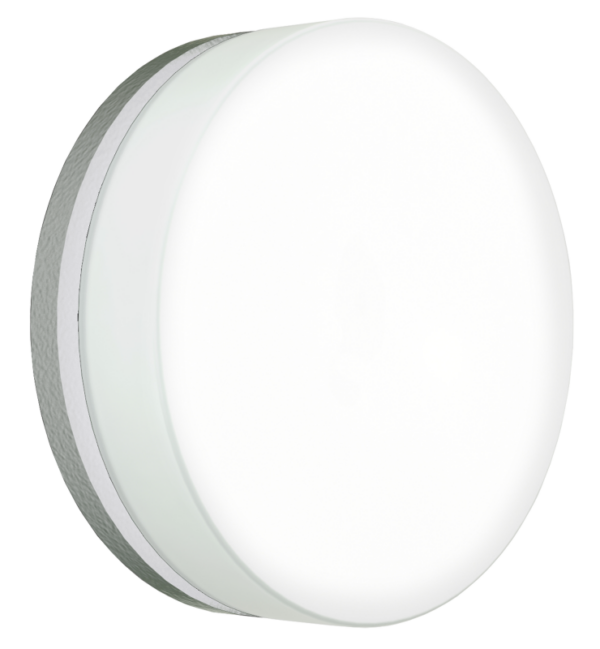

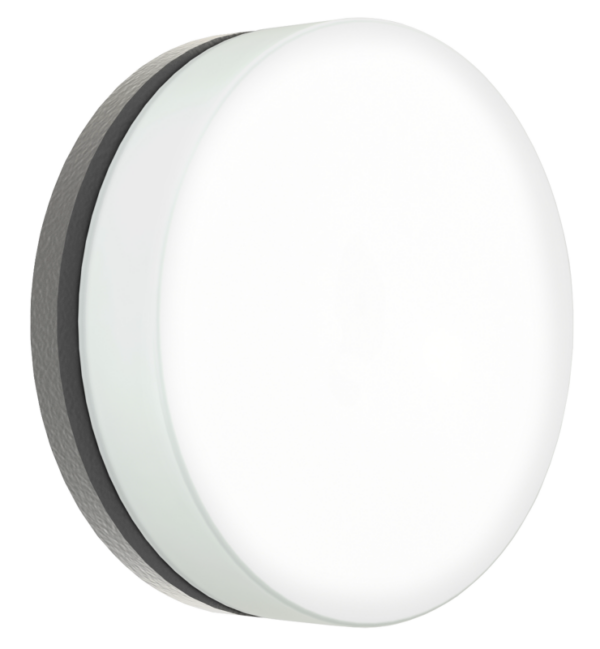

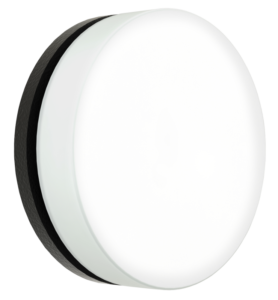

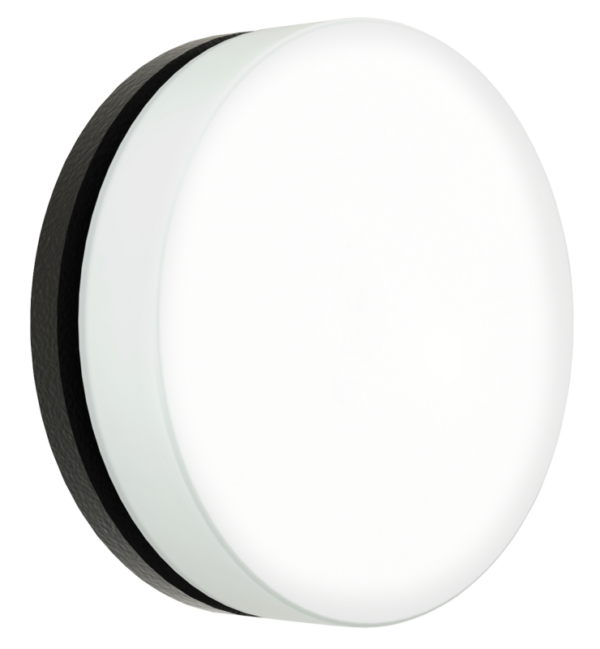

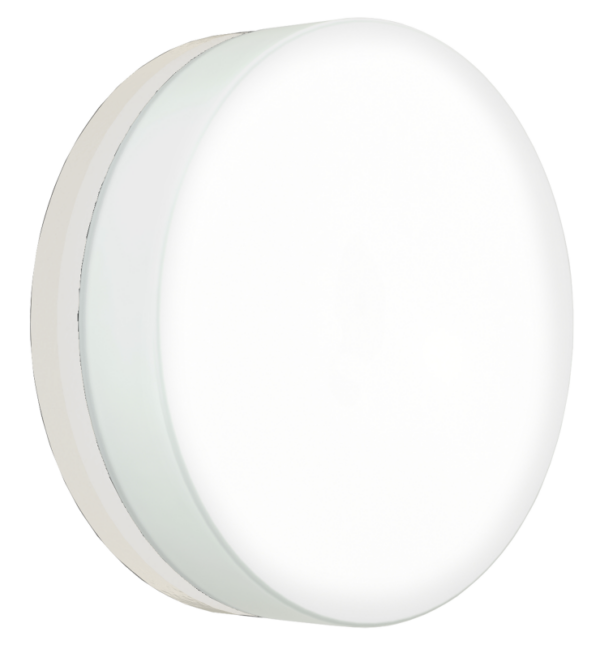

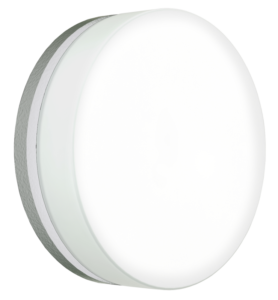

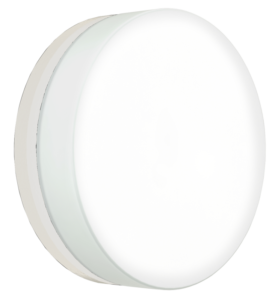

Wall and ceiling light

type ..6309

180,30207,10

Clear
Features
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
36 W
Rated luminous flux according to IEC 62722-2-1
3600 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

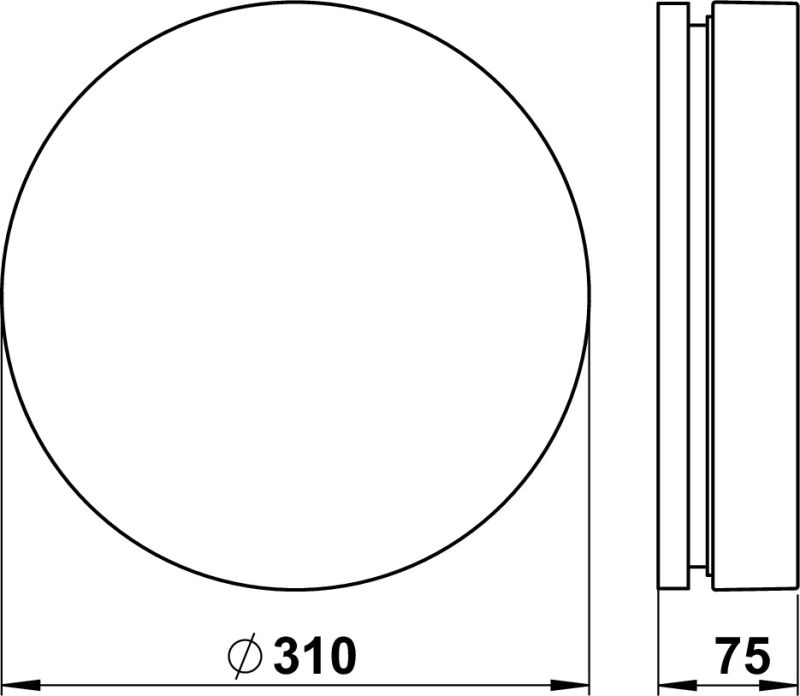

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626309
Offertext
For: 666309
Offertext
For: 686309
Offertext
For: 696309
Full catalog 21 / 22
Spare parts
90210412 - G 412, opal glass matt d = 310mm show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Lamp type

LED exchangeable

With control gear

No, Yes

Suitable for ceiling mounting

Yes

Power factor

1

Shape

Eckig

Dimming depending on control gear

Yes

Suitable for surface mounting

Yes

Dimming phase cut-off

Yes

Height/depth

75 mm

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

Suitable for lamp power

36 W

Rated luminous flux according to IEC 62722-2-1

3600 lm

Max. system power

36 W

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Exchangeable control gear

No, Yes

Stroboscope effect value SVM

0.4

Number of poles

3

Conductor cross section

2.5 mm²

Height

< 700 mm

Style

Modern

Type of wiring

Suitable for through wiring

Surface protection housing

Lacquered

Outer diameter

310 mm

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP65

Protection class

I

Connection type

Screwed terminal

Light output

1-seitig

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Mounting Type

Decke, Wand

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
