Article number 692233

Bollard light

type ..2233

This product is no longer in our assortment.

Nicht lieferbar

Description

Albert bollard light 692233 in stainless steel, with opal glass. Suitable for 1 x lamp 75W, socket E27. Ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 104 x 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

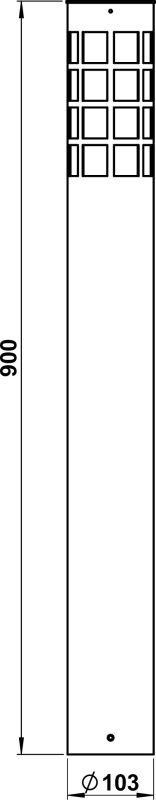

Dimensioned drawing
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
690080 - Recessed housing with protective contact socket IP44 / D show

Additional information

Weight 4,40 kg
Light output

2-seitig

Conductor cross section

2.5 mm²

Material housing

Stainless steel

Material cover

Glass opal

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Not required

With base plate

Yes

Colour housing

Stainless steel

Lowest energy efficiency class of the exchangeable lamp

E

Light type

Standleuchte

Connection type

Screwed terminal

Number of poles

3

Light sharing

Symmetric

Lamp type

Incandescent lamp

Suitable for number of lamps

1

Lamp holder

E27

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

900 mm

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Type of wiring

Suitable for through wiring

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Diameter

103 mm

Power factor

1

Type of luminaire

Bollard luminaire

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Shape

Eckig
