Article number Select a color, please

Bollard light

type ..2065

336,80387,50

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3.2 W
Rated luminous flux according to IEC 62722-2-1
330 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

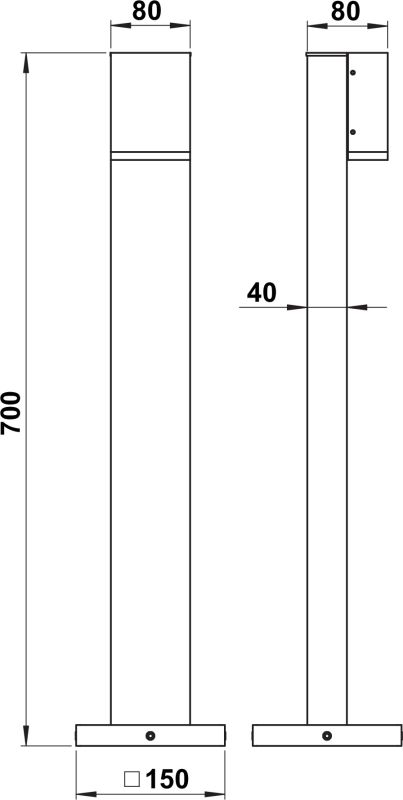

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622065
Offertext
For: 662065
Offertext
For: 682065
Offertext
For: 692065
Full catalog 21 / 22
Spare parts
90220456 - G 456, glass clear with satin edge ESG show
90270455 - G 455, acrylic frame show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Number of poles

3

Colour housing

Anthracite, Black, Silver, White

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

E

Material cover

Glass transparent

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

Highest energy efficiency class of the exchangeable lamp

A+

Colour rendering index CRI

80-89

With control gear

Yes

Lamp type

LED exchangeable

Lowest energy efficiency class of the exchangeable lamp

E

With light source

Yes

With base plate

Yes

Suitable for number of lamps

1

Max. system power

3.2 W

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP44

Power factor

0.9

Light type

Standleuchte

Height/depth

700 mm

Nominal voltage

230 V

Material housing

Aluminium

Protection class

I

Rated luminous flux according to IEC 62722-2-1

330 lm

Light sharing

Asymmetric

Suitable for lamp power

3.2 W

Width

80 mm

Connection type

Screwed terminal

Colour of light

White

Colour temperature

3000 K

Height

< 700 mm, 700 – 1000 mm

Style

Modern

Exchangeable control gear

Yes

Light output

Indirect

Length

80 mm

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Conductor cross section

2.5 mm²

Shape

Eckig
