Data sheet
Article number
Select a color, please

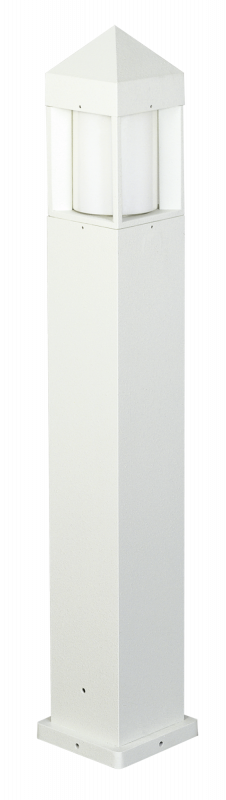

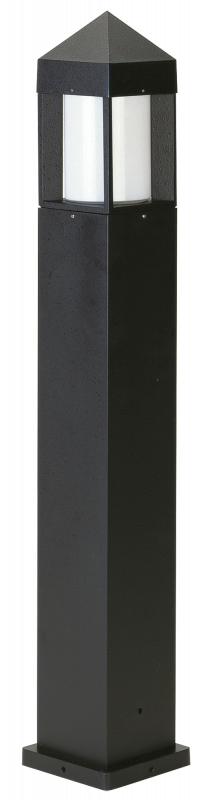

Bollard light
type ..2241
€348,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

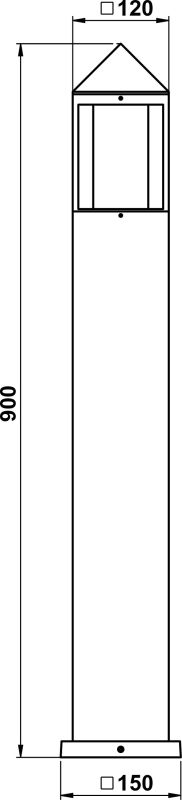

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662241
Offertext
For: 682241
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Type of wiring | Suitable for through wiring |
| Length | 120 mm |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour housing | Black, White |
| Material cover | Glass opal |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Type of control gear | Not required |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Lamp type | HV halogen lamp, Incandescent lamp |
| Height/depth | 900 mm |
| Connection type | Screwed terminal |
| Power factor | 1 |
| Width | 120 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| With base plate | Yes |
| Conductor cross section | 2.5 mm² |
| Degree of protection (IP) | IP44 |
| Shape | Eckig |
| Light type | Standleuchte |
| Height | 700 – 1000 mm |
| Protection class | I |
| Suitable for lamp power | 1 – 75 W |
| Max. system power | 75 W |
| Style | Modern |
| Number of poles | 3 |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Light output | 2-seitig |
