Article number Select a color, please

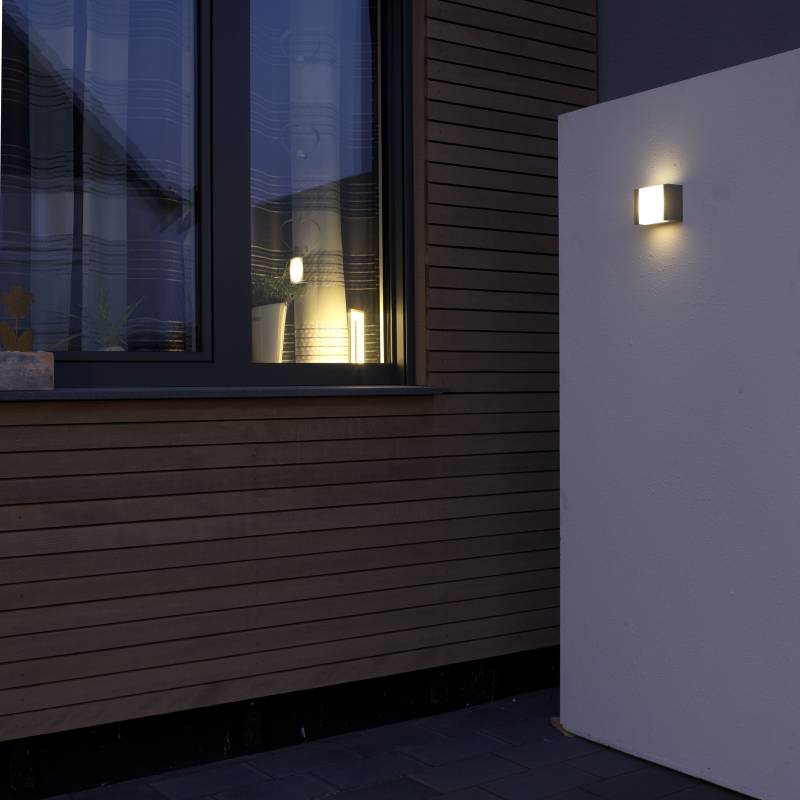

Wall and ceiling light

type ..0331

223,10255,30

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With control gear

Yes

Nominal voltage

230 V

Suitable for number of lamps

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming phase cut-off

Yes

Voltage type

AC

Light output

Direct

Degree of protection (IP)

IP54

Protection class

I

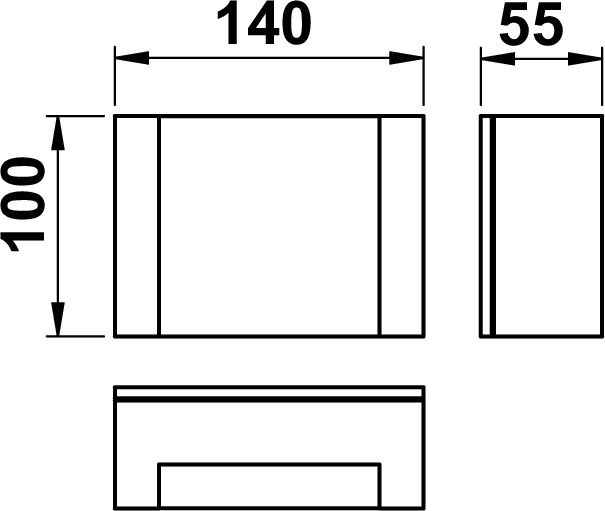

Width

140 mm

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Colour rendering index CRI

80-89

Style

Modern

Connection type

Screwed terminal

Height/depth

100 mm

Power factor

0.9

Number of poles

3

Max. system power

5 W

No dim function

Yes

Colour of light

White

Stroboscope effect value SVM

0.4

Dimming depending on control gear

Yes

Conductor cross section

2.5 mm²

Length

55 mm

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Type of wiring

Ending

Exchangeable control gear

Yes

Type of control gear

LED operating device voltage-controlled

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 75 KB
Dimensioned drawing
PDF | 90 KB
Light distribution curve - Eulumdat/LDT
LDT | 20 KB
Offertext
For: 620331
TXT | 267 B
Offertext
For: 660331
TXT | 262 B
Offertext
For: 680331
TXT | 262 B
Offertext
For: 690331
TXT | 245 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90260492 - G 492, PMMA square tube show
