Article number Select a color, please

Wall light with BWM

type ..0278

302,50348,00

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

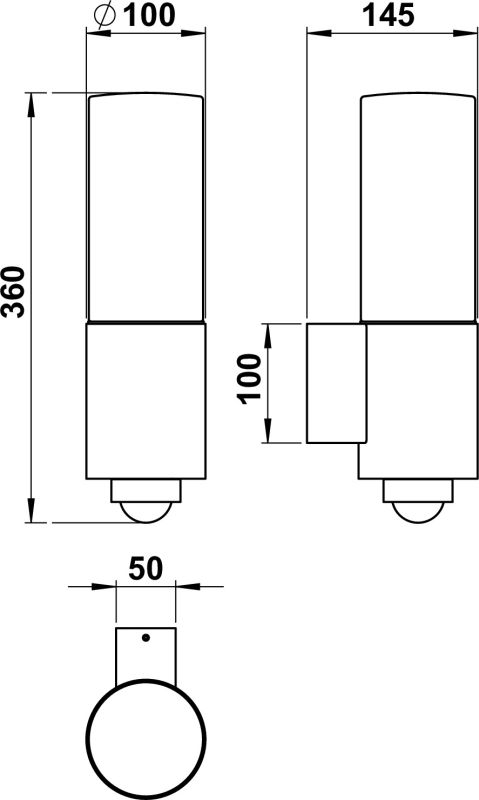

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 620278
Offertext
For: 660278
Offertext
For: 680278
Offertext
For: 690278
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620278
show
661002 - Corner bracket type ..1002, Black
Für: 660278
show
681002 - Corner bracket type ..1002, White
Für: 680278
show
691002 - Corner bracket type ..1002, Stainless steel
Für: 690278
show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Dimming phase cut-off

Yes

With control gear

Yes

Number of poles

3

Colour of light

White

With movement sensor

Yes

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

With light source

Yes

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Voltage type

AC

Outer diameter

100 mm

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Light sharing

Asymmetric

Colour temperature

3000 K

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Coverage

360 °

Beam angle

Open beam/diffuse

No dim function

Yes

Dimming depending on control gear

Yes

Conductor cross section

2.5 mm²

Length

145 mm

Height

< 700 mm

Surface protection housing

Lacquered

Height/depth

360 mm

Power factor

0.9

Colour rendering index CRI

80-89

Connection type

Screwed terminal

Light output

Direct

Protection class

I

Max. system power

10 W

Style

Modern

Type of wiring

Ending

Suitable for lamp power

10 W

Shape

Eckig

Degree of protection (IP)

IP54

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

With light sensor

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Rated luminous flux according to IEC 62722-2-1

900 lm

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
