Article number Select a color, please

Bollard light

type ..2289

434,80522,30

Clear
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Documents and files
Assembly instruction

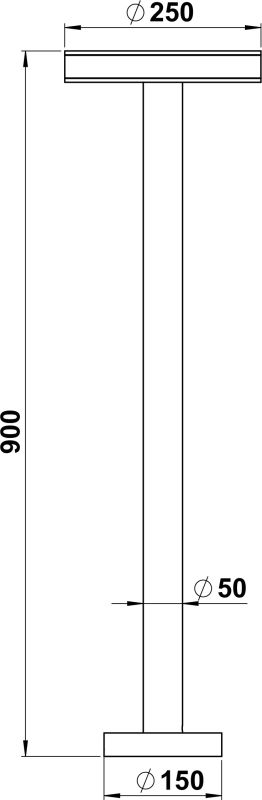

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 682289
Offertext
For: 692289
Offertext
For: 622289
Offertext
For: 662289
Full catalog 21 / 22
For: 682289, 692289
Spare parts
90270477 - G 477, acrylic ring satin
Für: 682289
show
90270478 - G 478, acrylic ring satin
Für: 622289, 662289, 692289
show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube
Für: 682289, 692289
show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Number of poles

3

Suitable for number of lamps

1

Material housing

Aluminium

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour housing

Anthracite, Black, Silver, White

Colour temperature

3000 K

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour rendering index CRI

80-89

Surface protection

Lacquered

Highest energy efficiency class of the exchangeable lamp

A+

Type of wiring

Suitable for through wiring

Lamp type

LED exchangeable

With light source

Yes

Height/depth

900 mm

Conductor cross section

2.5 mm²

Protection class

I

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Power factor

0.9

Diameter

250 mm

With base plate

Yes

Material cover

Plastic, structured

With control gear

Yes

Connection type

Screwed terminal

Light type

Standleuchte

Height

700 – 1000 mm

Suitable for lamp power

16 W

Max. system power

16 W

Rated luminous flux according to IEC 62722-2-1

1600 lm

Colour of light

White

Style

Modern

Exchangeable control gear

Yes

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Shape

Eckig

Light output

2-seitig
