Bollard light, 360 degrees, symmetrical

Name: Bollard light type no. 622298, 360 degrees, symmetrical
SKU: TYPE-2298-6-2-2298
Availability: InStock

type no. 622298

€899,80 – €1.034,70

Manufacturer's Suggested Retail Price excl. VAT

Colour housing	Clear

Features

Luminaire can be operated with 230 V, 0/50-60 Hz.

Luminaire has IP 54 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire can be supplied for DALI control.

Luminaire is equipped with increased or additional overvoltage protection.

Luminaire can be supplied with an insect-friendly Albert-Amber-LED.

Material housing

Aluminium

Colour housing

Anthracite, Black

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

18.5 W, 4.5 W

Rated luminous flux according to IEC 62722-2-1

2000 lm

Colour temperature

3000 K

Material cover

Plastic, transparent

Weight	N/A
Type of luminaire	Bollard luminaire
Energy efficiency class of the provided exchangeable built-in lamp	E
Surface protection	Lacquered
Lowest energy efficiency class of the exchangeable lamp	E
With base plate	Yes
Colour rendering index CRI	80-89

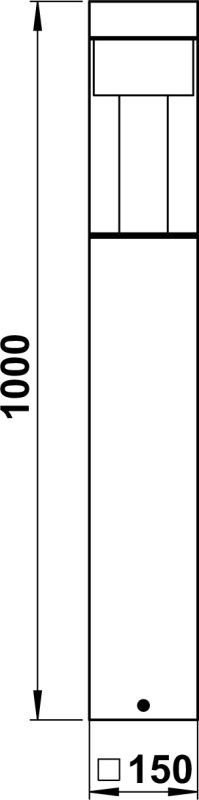

Width	150 mm
Height/depth	1000 mm
Max. system power	18.5 W
Voltage type	AC/DC
Colour of light	White
Degree of protection (IP)	IP54
Nominal voltage	230 V
Suitable for number of lamps	1
Highest energy efficiency class of the exchangeable lamp	A+
With control gear	Yes
Length	150 mm
Exchangeable control gear	Yes
Flickering value Pst LM	1
Stroboscope effect value SVM	0.4
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C16	30
Light output	2-seitig
Type of wiring	Suitable for through wiring
Protection class	I
Number of poles	3
Conductor cross section	2.5 mm²
Connection type	Screwed terminal
Light type	Standleuchte
Height	700 – 1000 mm
Type of control gear	LED operating device current-controlled
Power factor	0.9
Light output	Direct/indirect
Impact strength	IK08
Light sharing	Symmetric
Beam angle	Open beam/diffuse
Shape	Eckig
