Article number Select a color, please

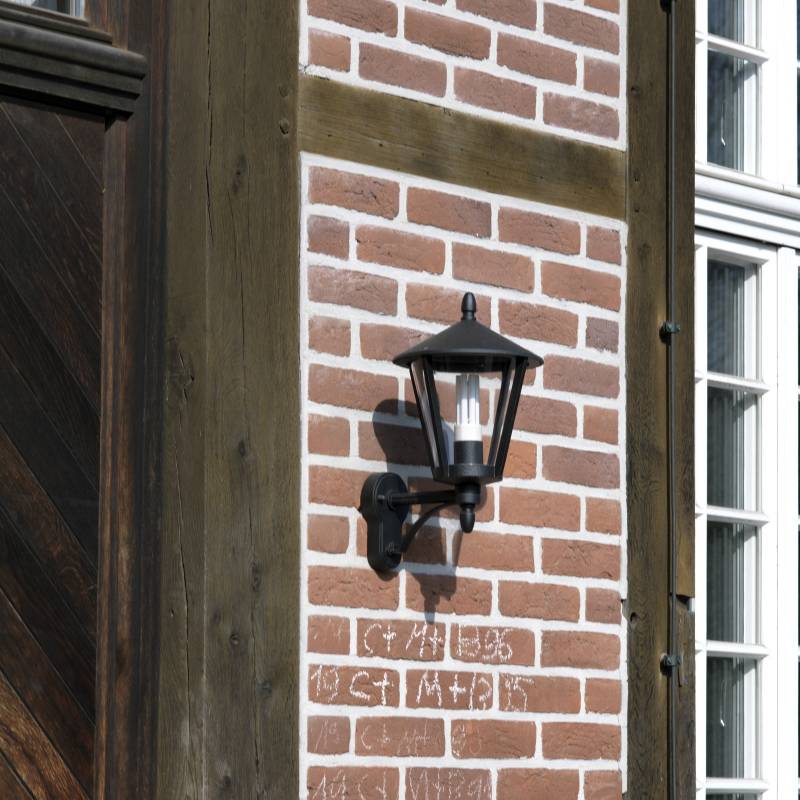

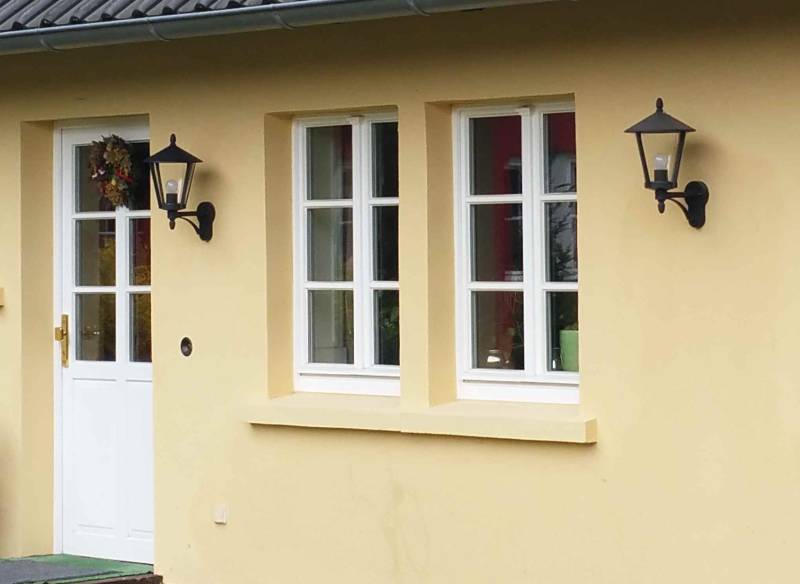

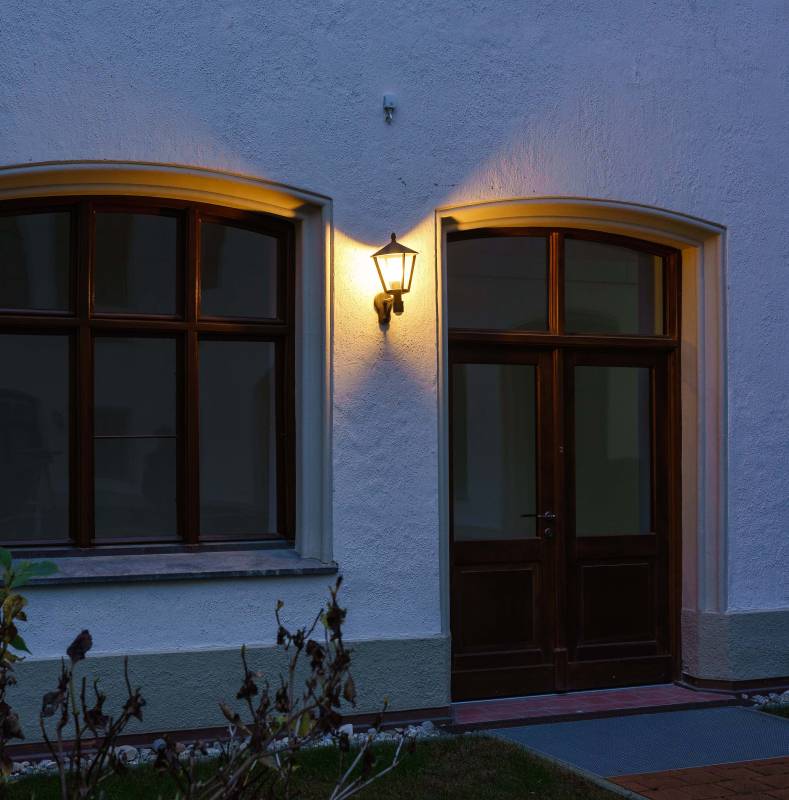

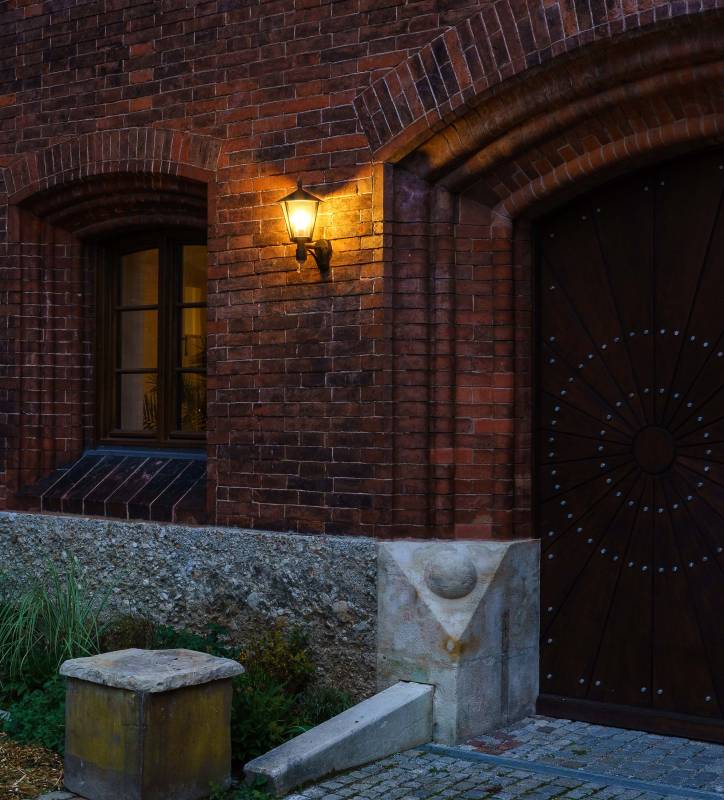

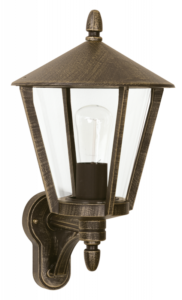

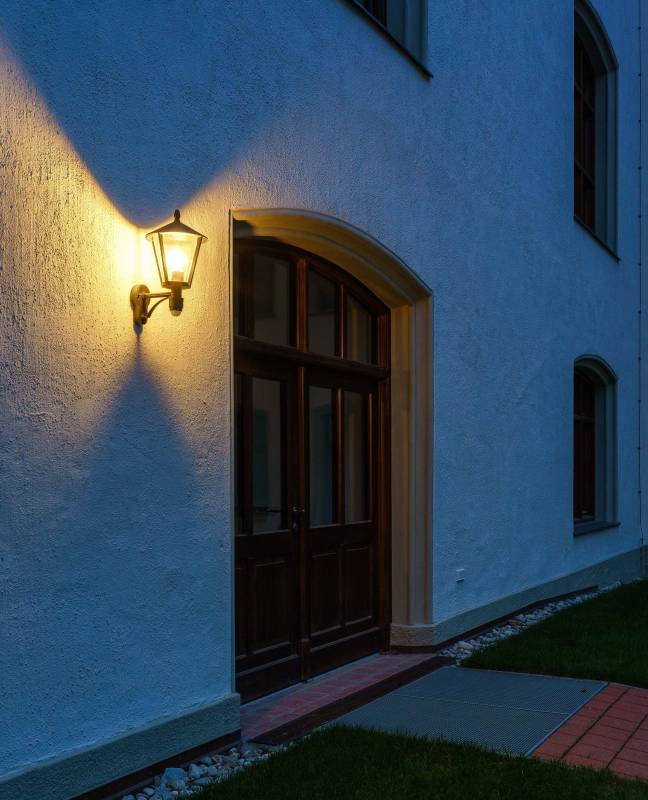

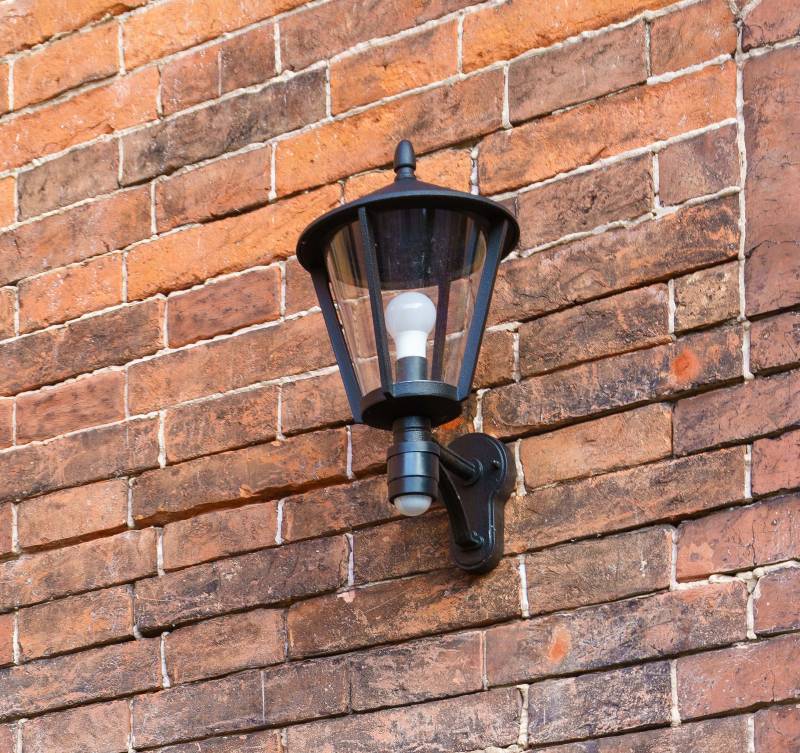

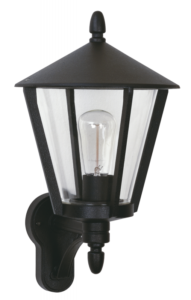

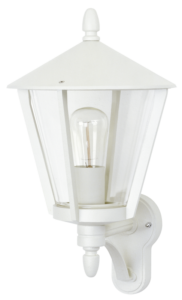

Wall lamp

type ..1814

178,60

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

Not required

Nominal voltage

230 V

Length

320 mm

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Suitable for number of lamps

1

Protection class

I

Voltage type

AC

Dimming manufacturer's proprietary system

Yes

Number of poles

3

Suitable for surface mounting

Yes

Dimming depending on control gear

Yes

No dim function

Yes

Outer diameter

260 mm

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Max. system power

75 W

Height/depth

450 mm

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

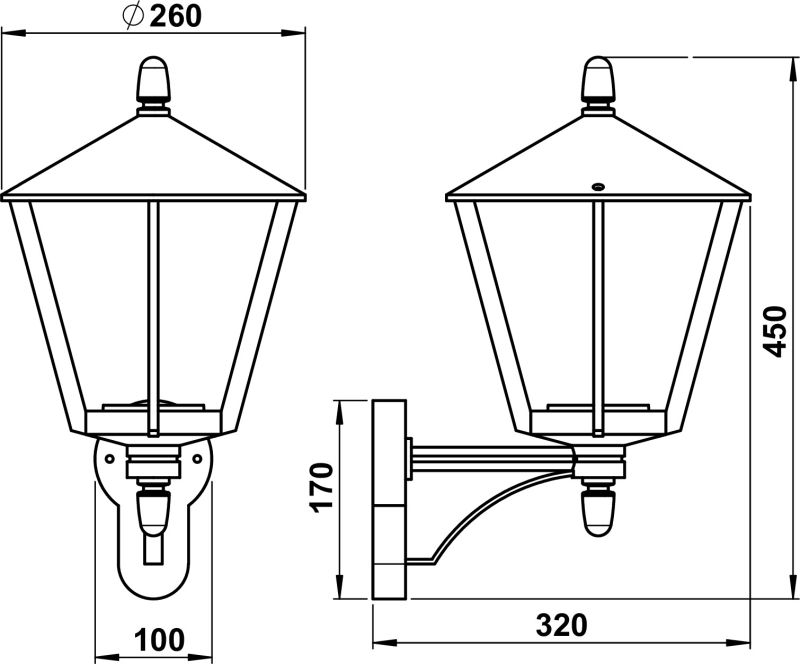

Dimensioned drawing
PDF | 67 KB
Light distribution curve - Eulumdat/LDT
LDT | 848 B
Offertext
For: 651814
TXT | 208 B
Offertext
For: 661814
TXT | 225 B
Offertext
For: 681814
TXT | 225 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90260144 - G 144, lamp glasses L-750 show
Accessories
651006 - Corner bracket angular type ..1006, Brown-Brass
Für: 651814
show
661006 - Corner bracket angular type ..1006, Black
Für: 661814
show
681006 - Corner bracket angular type ..1006, White
Für: 681814
show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
