Article number Select a color, please

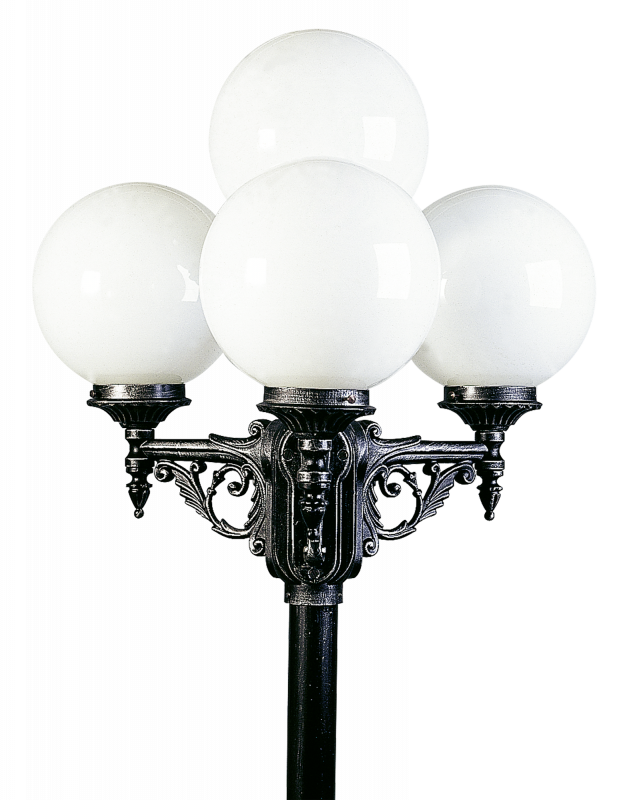

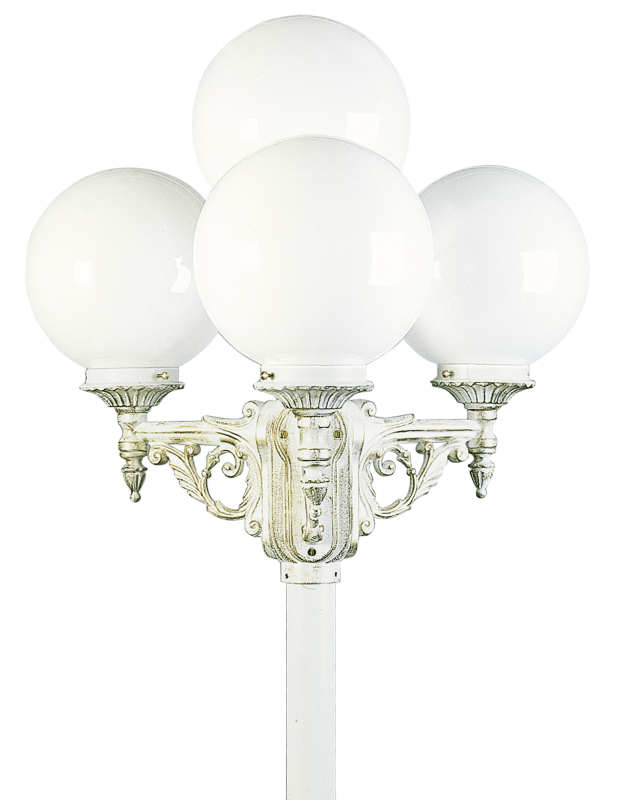

Post lamp 4-light

type ..2051

1.014,30

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, White-Gold
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W, 1 - 300 W
Material cover
Glass opal
Pole included
Ja
Documents and files
Assembly instruction

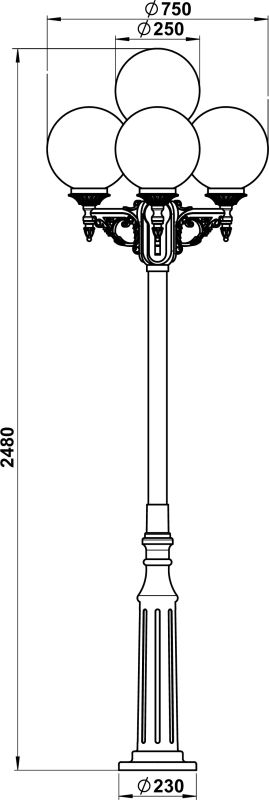

Dimensioned drawing
Offertext
For: 602051
Offertext
For: 672051
Full catalog 21 / 22
Spare parts
90210060 - G-60, glass sphere opal, d = 250 mm show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Suitable for number of lamps

4

Lamp holder

E27

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Black-Silver, White-Gold

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Lamp type

HV halogen lamp

Cable length

0 m

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Number of poles

3

No dim function

Yes

Suitable for lamp power

1 – 225 W, 1 – 300 W

Max. system power

225 W, 300 W

Power factor

1

Height/depth

2330 mm

Diameter

750 mm

Type of wiring

Suitable for through wiring

Connection type

Screwed terminal

Pole included

Ja

Conductor cross section

2.5 mm²

Shape

Eckig

Light type

Standleuchte

Height

> 1700 mm
