Article number Select a color, please

Path light

type ..2014

345,80

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing

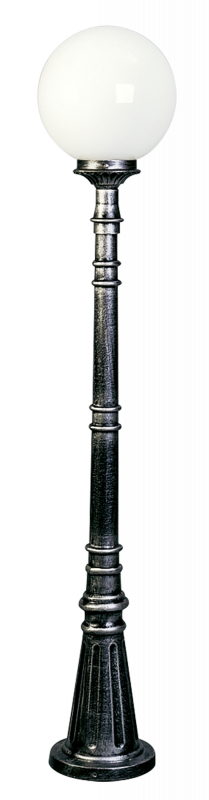

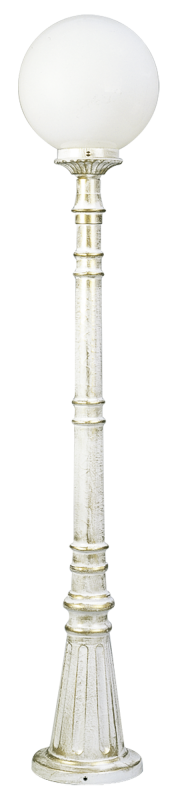

Black-Silver, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Number of poles

3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Protection class

I

Suitable for number of lamps

1

Surface protection

Lacquered

Voltage type

AC

Type of control gear

Not required

With base plate

Yes

Nominal voltage

230 V

Type of luminaire

Bollard luminaire

Height

1001 – 1700 mm

Light sharing

Symmetric

Diameter

250 mm

Light output

2-seitig

Light output

Direct/indirect

Shape

Eckig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Height/depth

1340 mm

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Type of wiring

Suitable for through wiring

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 36 KB

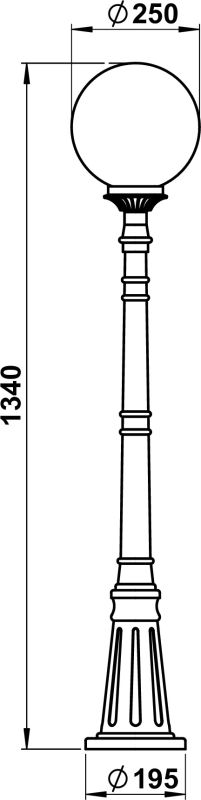

Dimensioned drawing
PDF | 30 KB
Light distribution curve - Eulumdat/LDT
LDT | 177 KB
Offertext
For: 602014
TXT | 264 B
Offertext
For: 672014
TXT | 264 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210060 - G-60, glass sphere opal, d = 250 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
