Article number Select a color, please

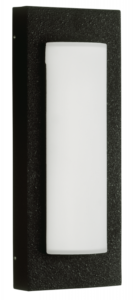

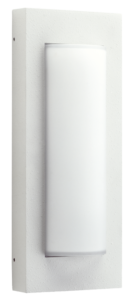

Wall and ceiling light

type ..6310

295,70

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Light output

Direct

Dimming phase cut-off

Yes

Suitable for ceiling mounting

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for number of lamps

1

No dim function

Yes

Light sharing

Symmetric

Suitable for surface mounting

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Voltage type

AC

Power factor

0.9

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Max. system power

16 W

Beam angle

Open beam/diffuse

Surface protection housing

Lacquered

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Colour of light

White

Length

80 mm

Height

< 700 mm

Light output

1-seitig

Mounting Type

Decke, Wand

Colour rendering index CRI

80-89

Width

150 mm

Height/depth

385 mm

Connection type

Screwed terminal

Shape

Eckig

Style

Modern

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

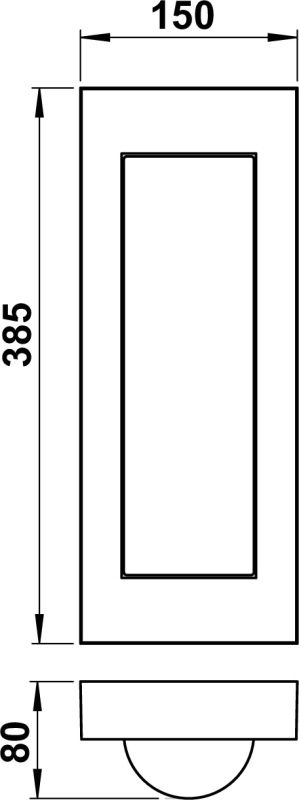

Dimensioned drawing
PDF | 80 KB
Light distribution curve - Eulumdat/LDT
LDT | 20 KB
Offertext
For: 666310
TXT | 234 B
Offertext
For: 686310
TXT | 210 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210350 - G 350, glass opal matt show
