Article number 692159

Ground recessed spotlight

type ..2159

266,30

Description

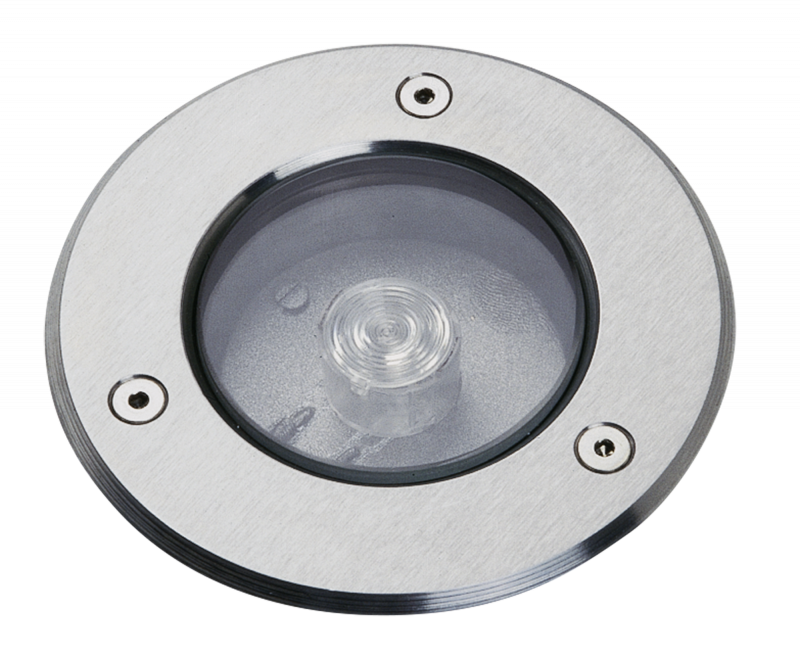

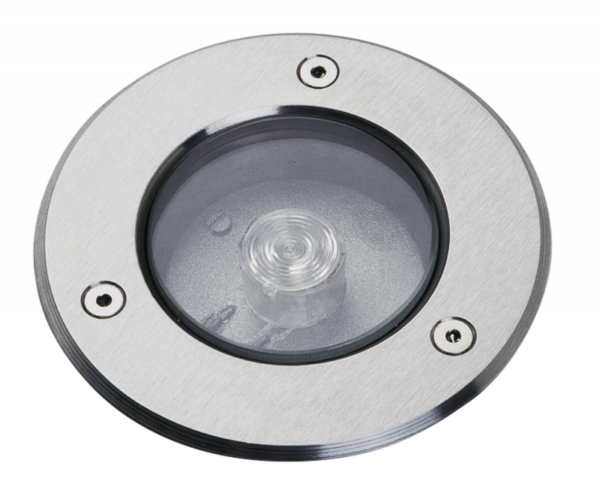

Albert ground recessed spotlight 692159 made of stainless steel with round stainless steel cover, safety glass clear. Fitted with 1 x LED 1W – light colour warm white -incl. converter for connection to 230V/50Hz.One cable gland PEG 13.5 for mains connection cable d 6-12 IP 67 – protection class I. For pressure loads up to 2000 kg. Dimensions: d 110 x 123 Glass surface reaches a temperature of max. 35 degrees C.

Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Silver
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
1 W
Rated luminous flux according to IEC 62722-2-1
80 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

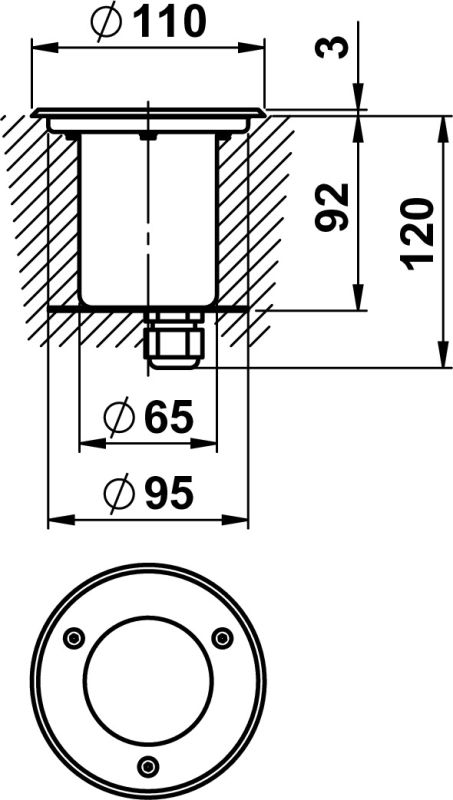

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220339 - G 339, toughened safety glass show

Additional information

Weight 0.60 kg
Lamp type

LED exchangeable

Rated luminous flux according to IEC 62722-2-1

80 lm

Suitable for number of lamps

1

Colour housing

Silver

Material cover

Glass transparent

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Beam angle

Narrow beam 11 – 20°

Energy efficiency class of the provided exchangeable built-in lamp

E

No dim function

Yes

Light distributor

Refractor lens

Light sharing

Symmetric

With light source

Yes

Height/depth

120 mm

Built-in height/depth

120 mm

Built-in diameter

95 mm

Protection class

I

Suitable for lamp power

1 W

Max. system power

1 W

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.8

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Outer diameter

110 mm

Degree of protection (IP)

IP67

Max. load

2000 kg

Over rollable

Yes

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Belastbarkeit

0 bis 2000 kg

Height

< 700 mm

Material housing

Aluminium

Exchangeable control gear

Yes

Impact strength

IK08

Max. surface temperature

35 °C
