Article number 692316

Ground recessed spotlight

type ..2316

244,20

Specifications

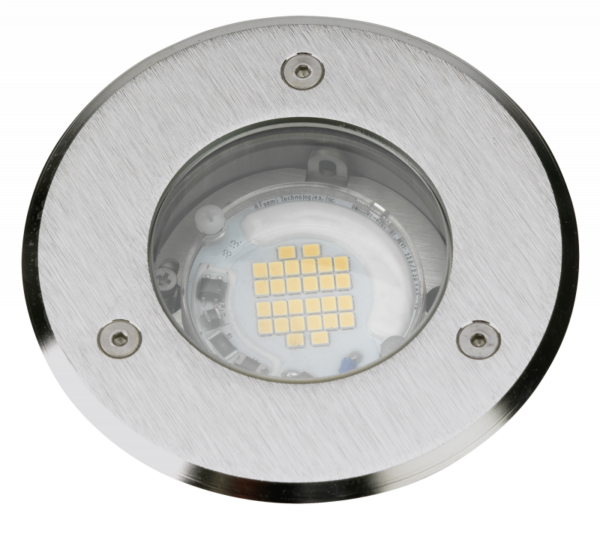

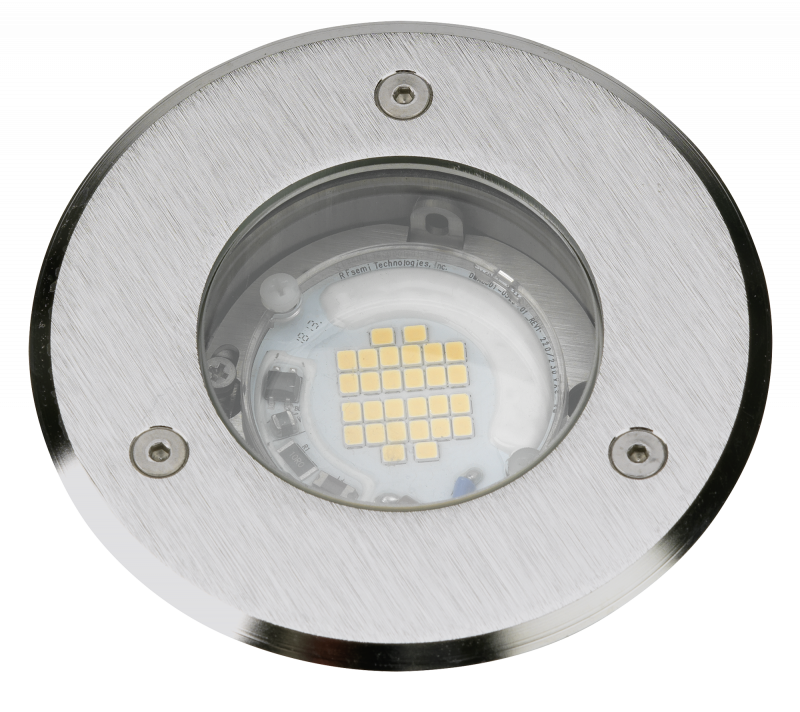

Albert-ground recessed spotlight 692316 – symmetrical –
made of cast aluminium with round stainless steel cover, clear safety glass. Equipped for 1 x LED 5 Watt incl. converter, 480 lm. 3000K. One cable gland for mains connection cables. Protection class IP 67 – protection class I. For pressure loads up to 2000 kg. Dimensions: d 110 x 120 Glass surface reaches a temperature of max. 35 degrees C.

Features
IP67 Product-Icon The luminaire has IP 67 protection.
The luminaire has IP 67 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight 0,60 kg
Outer diameter

110 mm

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Dimming phase cut-off

Yes

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

Max. system power

6 W

No dim function

Yes

Light distributor

Refractor lens

Light sharing

Symmetric

Height/depth

120 mm

Suitable for number of lamps

1

Built-in height/depth

120 mm

Built-in diameter

95 mm

Protection class

I

Voltage type

AC

Nominal voltage

230 V

Impact strength

IK08

Degree of protection (IP)

IP67

Max. load

2000 kg

Over rollable

Yes

Shape

Eckig

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Colour of light

White

Height

< 700 mm

Exchangeable control gear

Yes

Load capacity

0 bis 2000 kg

Type of wiring

Ending

Max. surface temperature

35 °C

Colour rendering index CRI

80-89

Power factor

0.8

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 192 KB

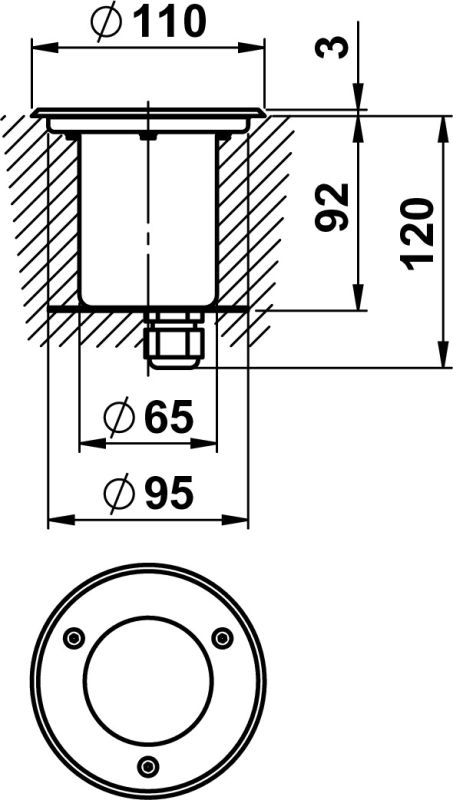

Dimensioned drawing
