Data sheet
Article number
Select a color, please
Spit lamp
type ..2432
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
600 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

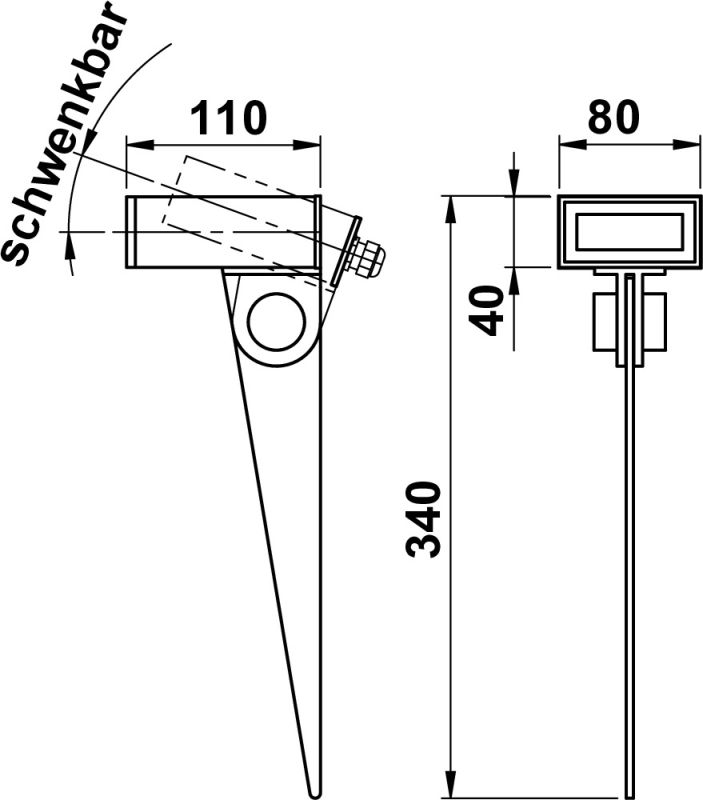

Dimensioned drawing
Offertext
For: 622432
Offertext
For: 662432
Full catalog 21 / 22
Spare parts
| 90220456 - G 456, glass clear with satin edge ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Material cover | Glass transparent |
| Suitable for pedestal/floor mounting | Yes |
| With control gear | Yes |
| Adjustability | Swivelling |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Colour housing | Anthracite, Black |
| Material housing | Aluminium |
| Dimming phase cut-off | Yes |
| Voltage type | AC/DC |
| Type of control gear | LED operating device voltage-controlled |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Nominal voltage | 230 V |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Length | 110 mm |
| Beam angle | Medium beam 21-40° |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP54 |
| Width | 80 mm |
| Height/depth | 40 mm |
| Max. system power | 6.7 W |
| Suitable for lamp power | 6.7 W |
| Colour rendering index CRI | 80-89 |
| Colour of light | White |
| Light output | Direct |
| Number of poles | 3 |
| Rated luminous flux according to IEC 62722-2-1 | 600 lm |
| Power factor | 0.9 |
| Protection class | I |
| No dim function | Yes |
| Colour temperature | 3000 K |
| Light sharing | Symmetric |
| Luminous flux | 600 lm |
| Connectable conductor cross section | 0 mm² |
| Conductor cross section | 0 mm² |
| Light distributor | Reflector |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Shape | Eckig |
| Mounting Type | Spieß |
| Light output | 1-seitig |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Flickering value Pst LM | 1 |
| Beam angle adjustable | Continuously variable |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
