Article number Select a color, please

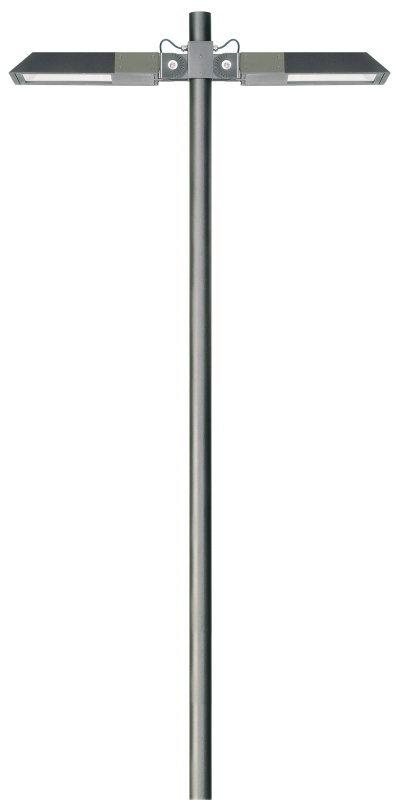

Vario post-top luminaire

type ..0844

1.959,60

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
115 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Suitable for spigot size
76 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 76mm.

Documents and files
Assembly instruction
Dimensioned drawing
Offertext
For: 620844
Offertext
For: 660844
Full catalog 21 / 22
Spare parts
90220465 - G 465, rectangular pane ESG show

Additional information

Weight N/A
Colour of light

White

Voltage type

AC/DC

No dim function

Yes

With control gear

Yes

Type of control gear

LED operating device current-controlled

Protection class

I

Mounting Type

Post top

Surface protection

Lacquered

Material housing

Aluminium

Suitable for number of lamps

2

With light source

Yes

Lamp type

LED exchangeable

Colour housing

Anthracite, Black

Width

300 mm

Light distributor

Refractor lens

Nominal voltage

230 V

Length

1300 mm

Height/depth

70 mm

Max. system power

115 W

Conductor cross section

2.5 mm²

Cable length

0 m

Material cover

Glass transparent

Colour temperature

3000 K

Power factor

0.9

Energy efficiency class of the provided exchangeable built-in lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light type

Mastaufsatzleuchte

Degree of protection (IP)

IP65

Suitable for spigot size

76 mm

Suitable for lamp power

115 W

Colour rendering index CRI

80-89

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Rated luminous flux according to IEC 62722-2-1

3800 lm

Adjustable optics

Yes

Type of wiring

Suitable for through wiring

Connection type

Screwed terminal

Number of poles

3

Height

< 700 mm

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig
