Article number 690201

Wall and ceiling light

type ..0201

251,50

Specifications

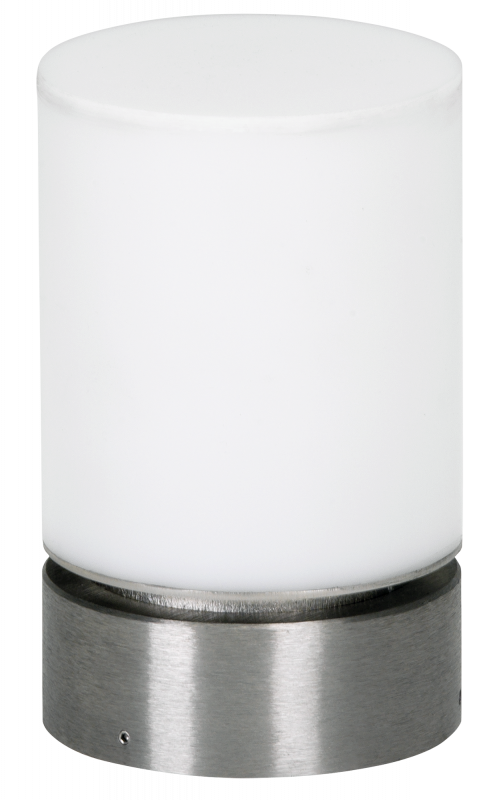

Albert wall and ceiling light 690201
made of stainless steel with acrylic glass for 1 x ESL or LED Retrofit max. 15 Watt socket E27protection class IP 44 – protection class : d 100 x H 150 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
15 W
Colour temperature
3000 K
Material cover
Plastic, opal
Weight 0,90 kg
Dimming depending on control gear

Yes

Dimming manufacturer's proprietary system

Yes

Suitable for number of lamps

1

Suitable for surface mounting

Yes

Length

165 mm

Type of control gear

Not required

Outer diameter

100 mm

Suitable for ceiling mounting

Yes

Dimming phase cut-off

Yes

Voltage type

AC

Nominal voltage

230 V

With control gear

Yes

Dimming phase cut-on

Yes

Light output

1-seitig

No dim function

Yes

Height/depth

165 mm

Style

Edelstahl, Modern

Protection class

I

Max. system power

15 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Connection type

Screwed terminal

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Beam angle

Open beam/diffuse

Conductor cross section

2.5 mm²

Type of wiring

Ending

Light output

Direct

Lowest energy efficiency class of the exchangeable lamp

E

Suitable for wall mounting

Yes

Number of poles

3

Mounting Type

Decke, Wand

Power factor

1

Height

< 700 mm

Surface protection housing

Untreated

Exchangeable control gear

Yes

Light sharing

Symmetric

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 25 KB

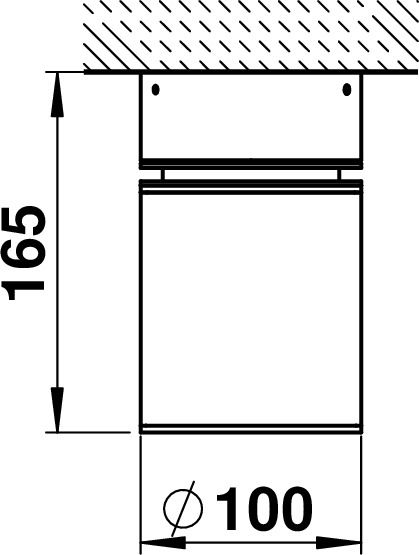

Dimensioned drawing
PDF | 15 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90260084 - G 84, tubular cylinder Opal L = 112 mm PMMA show
Accessories
90750100 - LED Retrofit Classic show
