Data sheet

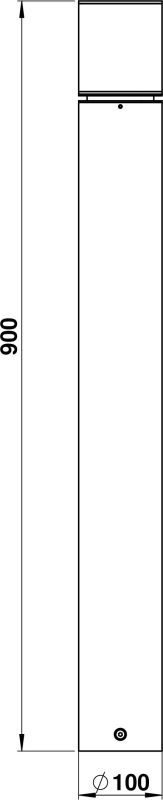

Bollard light Stainless steel Dimensioned drawing Article 692098
Bollard light Stainless steel Dimensioned drawing Article 692098
Article number 692098

Bollard light

type ..2098

€399,60

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

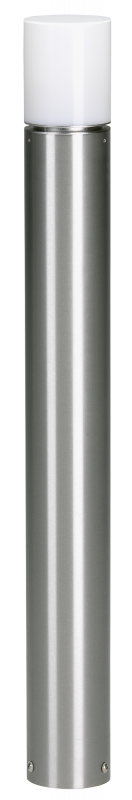

Albert bollard light 692098 made of stainless steel with acrylic glass for 1 x ESL or LED Retrofit max. 15 Watt socket E27ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 100 x H 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction
download PDF 28.94 KB
Dimensioned drawing
download PDF 17.04 KB
Light distribution curve - Eulumdat/LDT
download LDT 1.53 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90260084 - G 84, tubular cylinder Opal L = 112 mm PMMA show
Accessories
690010 - Earth mounting base type ..0010 show
690080 - Recessed housing with protective contact socket IP44 / D show
90750100 - LED Retrofit Classic show

Additional information

Weight 3,80 kg
Nominal voltage

230 V
With base plate

Yes
Colour of light

White
Voltage type

AC
Material cover

Plastic, opal
Type of control gear

Not required
Diameter

100 mm
Degree of protection (IP)

IP44
Style

Edelstahl, Modern
Protection class

I
Light type

Standleuchte
Suitable for lamp power

1 – 75 W
Max. system power

75 W
Material housing

Stainless steel
Highest energy efficiency class of the exchangeable lamp

A+
Lamp type

LED exchangeable
With light source

Yes
Suitable for number of lamps

1
Energy efficiency class of the provided exchangeable built-in lamp

A+
Lamp holder

E27
Colour housing

Stainless steel
Colour temperature

3000 K
Number of poles

3
Colour rendering index CRI

80-89
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Flickering value Pst LM

1
Stroboscope effect value SVM

0.4
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C16

30
Housing material quality

Stainless steel 304 (V2A)
Light output

Direct/indirect
Height/depth

900 mm
Type of wiring

Suitable for through wiring
Light output

2-seitig
Conductor cross section

2.5 mm²
Connection type

Screwed terminal
Height

700 – 1000 mm
Lowest energy efficiency class of the exchangeable lamp

E
Type of luminaire

Bollard luminaire
Power factor

1
Shape

Eckig
