Article number Select a color, please

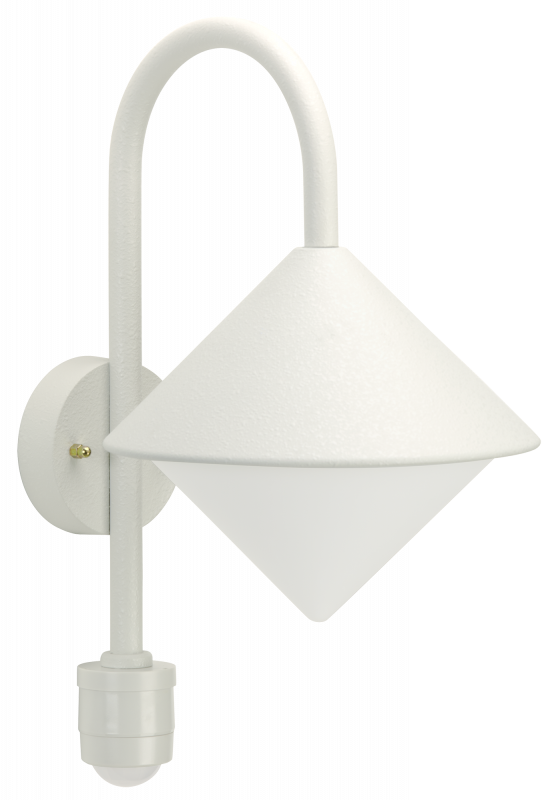

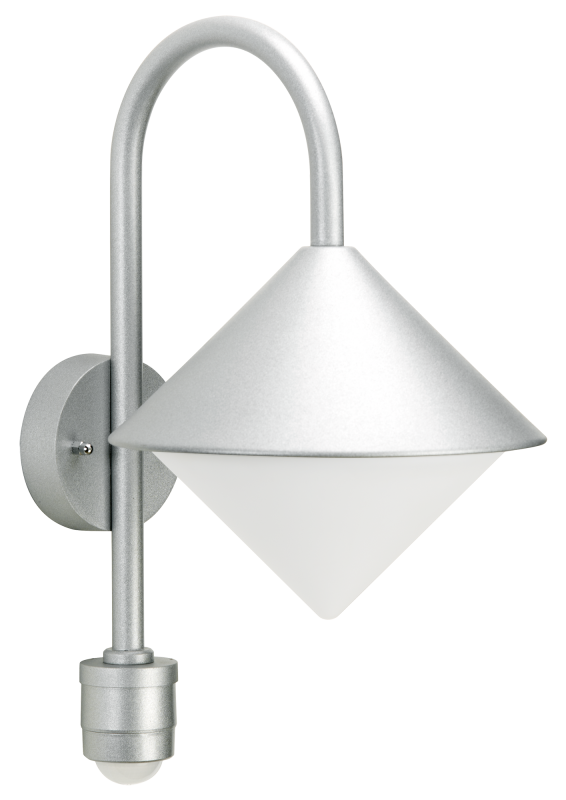

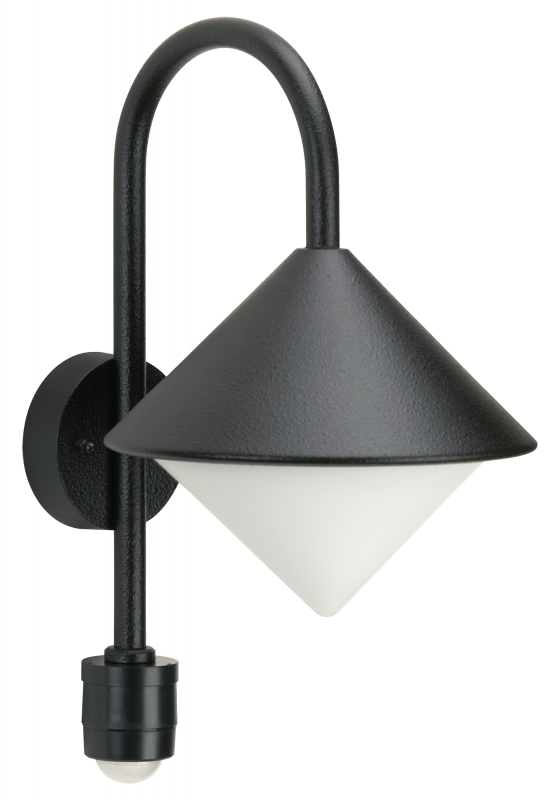

Wall light

type ..0646

220,90253,70

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Light sharing

Symmetric

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Beam angle

Open beam/diffuse

Dimming depending on control gear

Yes

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Protection class

I

Dimming phase cut-on

Yes

Mounting Type

Wand

Height

< 700 mm

Number of poles

3

Coverage

360 °

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light type

Wandleuchte

Connection type

Screwed terminal

Power factor

1

Height/depth

480 mm

Length

335 mm

Outer diameter

260 mm

Type of wiring

Ending

Surface protection housing

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Light output

1-seitig

No dim function

Yes

Unified Glare Ratio (UGR)

1

Conductor cross section

2.5 mm²

Shape

Eckig

Degree of protection (IP)

IP44

Max. system power

75 W

Photobiological safety according to EN 62471

RG1

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

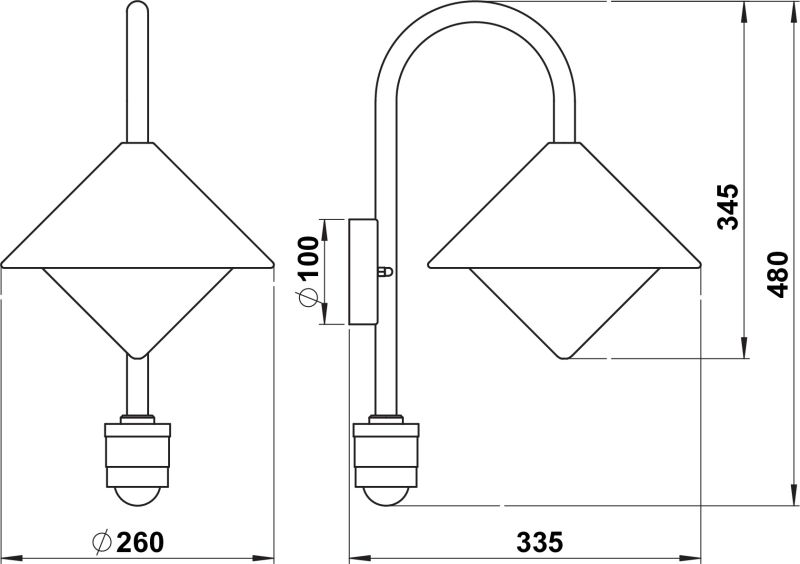

Dimensioned drawing
PDF | 228 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 660646
TXT | 242 B
Offertext
For: 680646
TXT | 242 B
Offertext
For: 690646
TXT | 219 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210307 - G 307, glass opal, pointed, with thread 85 mm show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 660646
show
681005 - Corner bracket round type ..1005, White
Für: 680646
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 690646
show
90750100 - LED Retrofit Classic show
