Article number 696133

Wall and ceiling light

type ..6133

235,30

Description

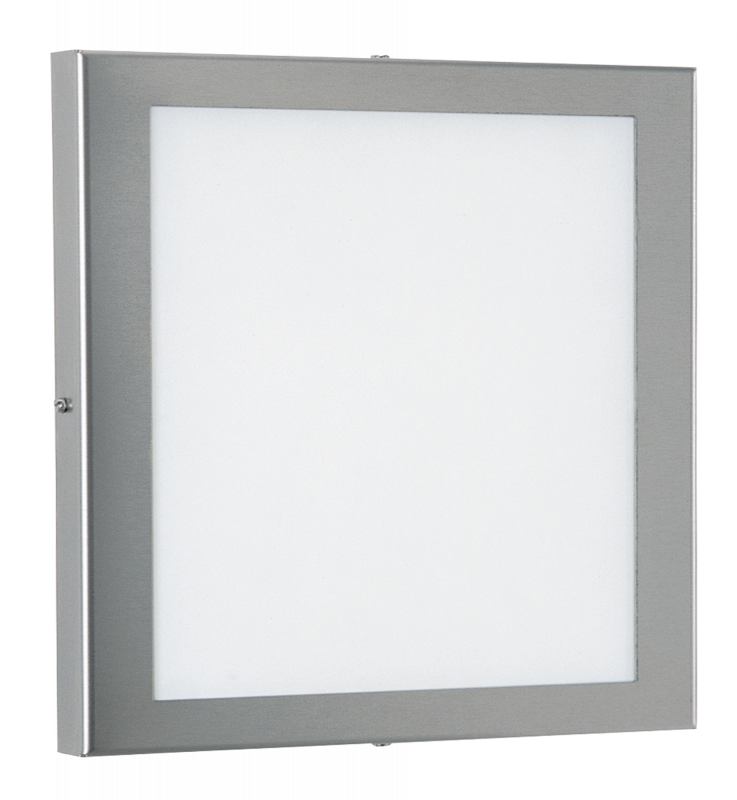

Albert wall ceiling light 696133
made of stainless steel with opal glass. Equipped for 3 x fluorescent lamps TC-SEL 11W, lampholder 2G7.Due to the current legal situation we deliver the lights only with electronic ballast for fluorescent lamps TC-SEL, lampholder 2G7.protection class IP 54 – protection class : 320 x 320 x 60 mm

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
2G7
Suitable for lamp power
10 W
Material cover
Glass structured
Documents and files
Assembly instruction

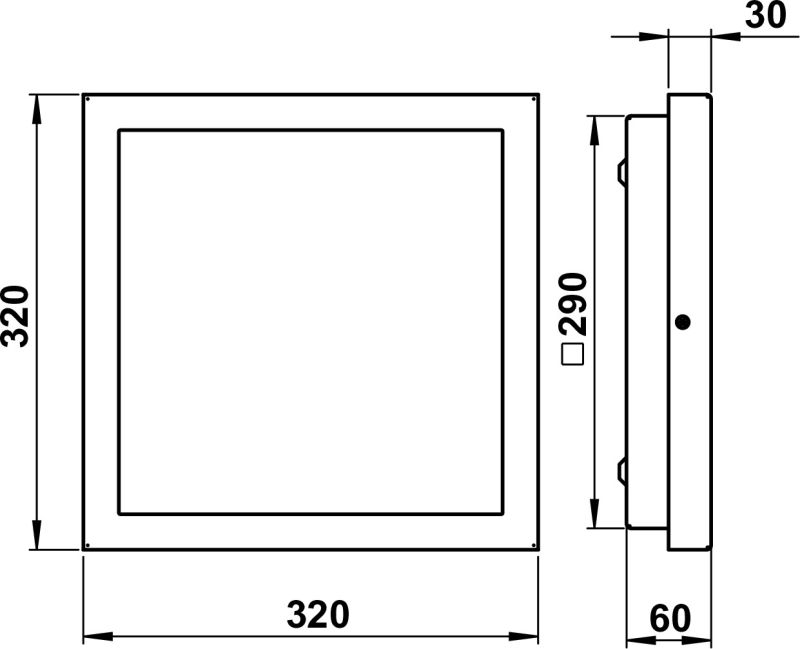

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220302 - G 302, milk flashed glass show

Additional information

Weight 4,00 kg
Light output

1-seitig

Lamp type

Compact fluorescent lamp

Suitable for number of lamps

3

Lamp holder

2G7

Material housing

Stainless steel

Colour housing

Stainless steel

Suitable for ceiling mounting

Yes

Nominal voltage

230 V

With control gear

Yes

Voltage type

AC

Type of control gear

Low-loss ballast inductive

Suitable for surface mounting

Yes

Suitable for lamp power

10 W

Max. system power

11 W

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Degree of protection (IP)

IP54

Material cover

Glass structured

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height

< 700 mm

Dimming depending on control gear

Yes

No dim function

Yes

Width

320 mm

Height/depth

320 mm

Surface protection housing

Untreated

Unified Glare Ratio (UGR)

1

Highest energy efficiency class of the exchangeable lamp

A++

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Protection class

I

Type of wiring

Suitable for through wiring

Power factor

1

Exchangeable control gear

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Length

60 mm

Number of poles

3

Shape

Eckig
