Article number Select a color, please

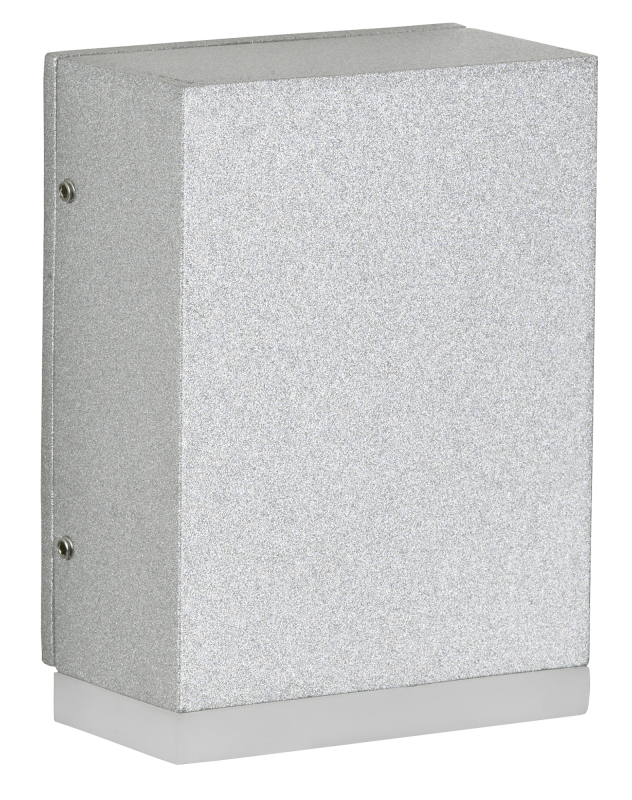

Wall light

type ..0325

221,00254,20

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium

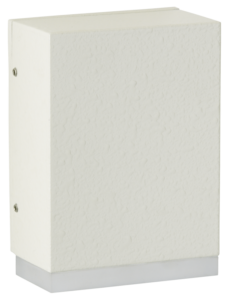

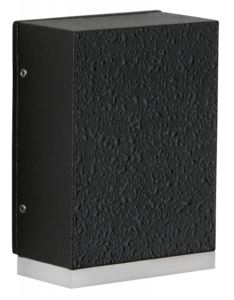

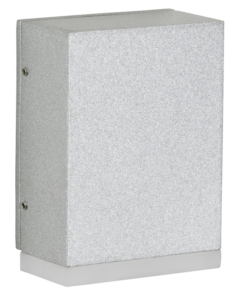

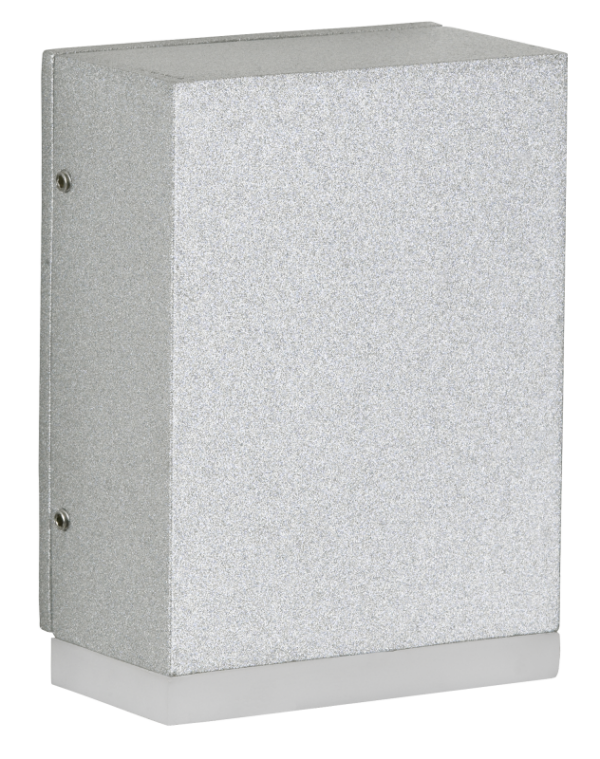

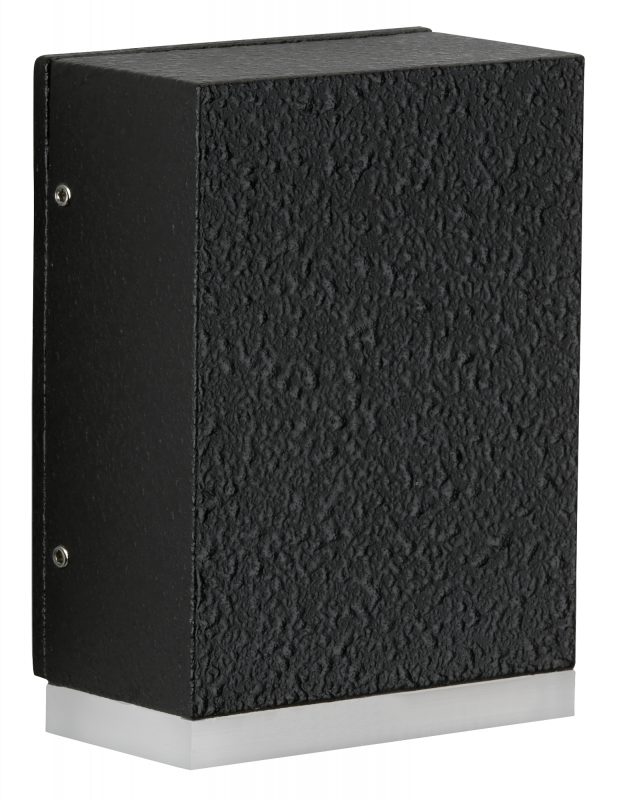

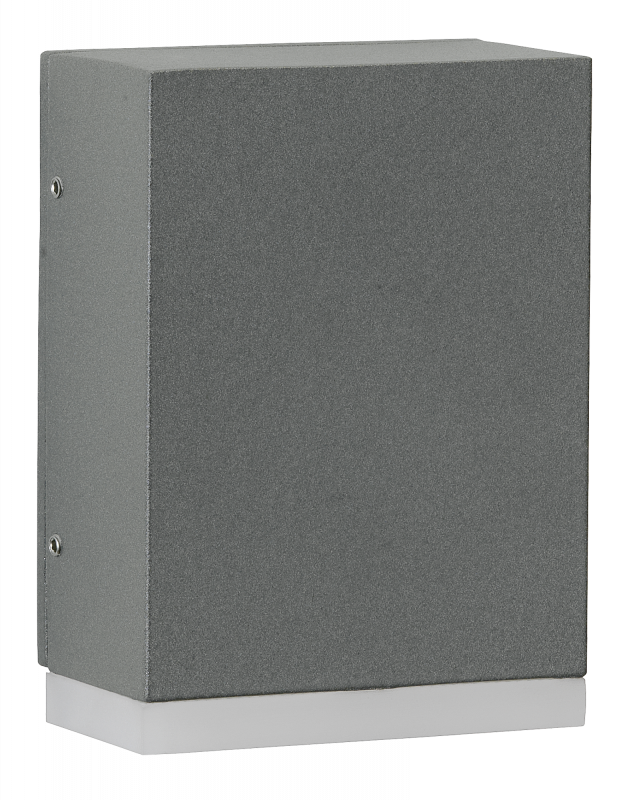

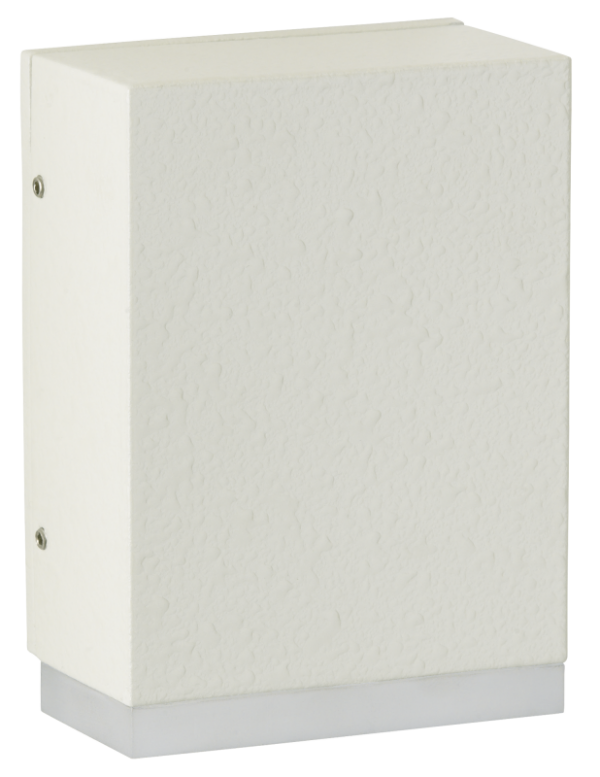

Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3.2 W, 5 W
Rated luminous flux according to IEC 62722-2-1
330 lm, 3330 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

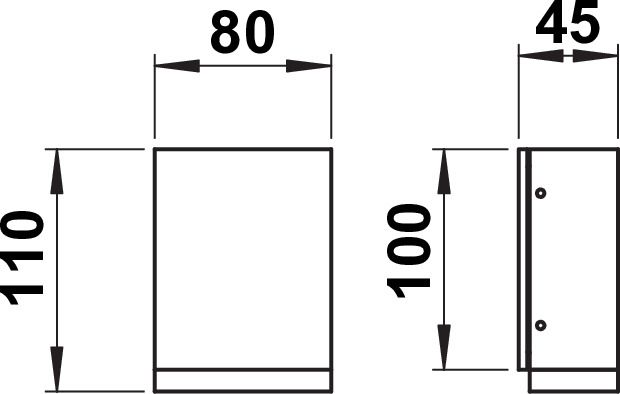

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620325
Offertext
For: 660325
Offertext
For: 680325
Offertext
For: 690325
Full catalog 21 / 22
Spare parts
90220456 - G 456, glass clear with satin edge ESG show
90270455 - G 455, acrylic frame show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Voltage type

AC, AC/DC

With light source

Yes

Suitable for surface mounting

Yes

Colour housing

Anthracite, Black, Silver, White

Light output

Direct

Conductor cross section

2.5 mm²

Beam angle

Open beam/diffuse

Number of poles

3

Max. system power

3.2 W, 5 W

Material cover

Glass transparent

Material housing

Aluminium

With control gear

Yes

Lamp type

LED exchangeable

Suitable for lamp power

3.2 W, 5 W

Suitable for number of lamps

1

Height/depth

110 mm

Power factor

0.9

Width

80 mm

Dimming depending on control gear

Yes

Exchangeable control gear

Yes

Surface protection housing

Lacquered

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Type of wiring

Ending

Colour rendering index CRI

80-89

Degree of protection (IP)

IP44, IP54

Light output

1-seitig

Flickering value Pst LM

1

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Connection type

Screwed terminal

Colour temperature

3000 K

Colour of light

White

Rated luminous flux according to IEC 62722-2-1

330 lm, 3330 lm

Height

< 700 mm

Style

Modern

Light type

Wandleuchte

Max. number of luminaires per miniature circuit breaker B16

20

Length

45 mm

Mounting Type

Wand

Stroboscope effect value SVM

0.4

No dim function

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig
