Article number Select a color, please

Bollard light

type ..3000

486,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

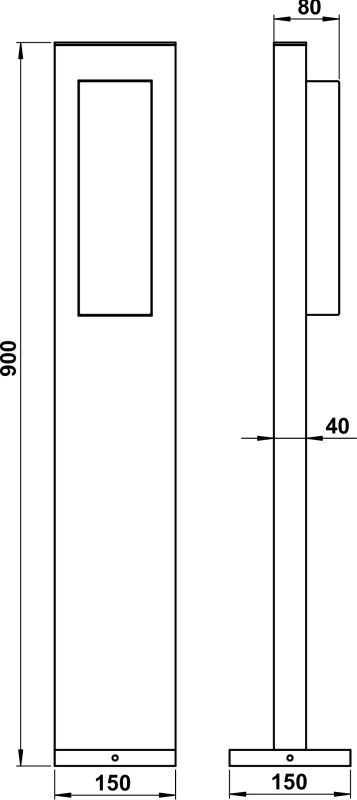

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 663000
Offertext
For: 683000
Full catalog 21 / 22
Spare parts
90210350 - G 350, glass opal matt show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Shape

Eckig

Voltage type

AC

With control gear

Yes

Colour rendering index CRI

80-89

Type of wiring

Suitable for through wiring

Energy efficiency class of the provided exchangeable built-in lamp

E

Highest energy efficiency class of the exchangeable lamp

A+

Type of control gear

LED operating device voltage-controlled

Conductor cross section

2.5 mm²

Power factor

0.9

Max. system power

16 W

Surface protection

Lacquered

Light type

Standleuchte

Colour temperature

3000 K

Degree of protection (IP)

IP44

Lamp type

LED exchangeable

With light source

Yes

Nominal voltage

230 V

Suitable for number of lamps

1

Material housing

Aluminium

Colour housing

Black, White

Lowest energy efficiency class of the exchangeable lamp

E

Material cover

Glass opal

With base plate

Yes

Rated luminous flux according to IEC 62722-2-1

1600 lm

Protection class

I

Exchangeable control gear

Yes

Light output

Direct/indirect

Height/depth

900 mm

Light sharing

Asymmetric

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Width

150 mm

Number of poles

3

Length

80 mm

Colour of light

White

Connection type

Screwed terminal

Suitable for lamp power

16 W

Height

700 – 1000 mm

Style

Modern

Light output

2-seitig
